AH1892-Z-7
ActiveDiodes Inc
MICROPOWER SELECTABLE THRESHOLD OMNIPOLAR HALL EFFECT SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
AH1892-Z-7
ActiveDiodes Inc
MICROPOWER SELECTABLE THRESHOLD OMNIPOLAR HALL EFFECT SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AH1892-Z-7 |
|---|---|
| Current - Output (Max) [Max] | 2.5 mA |
| Current - Supply (Max) [Max] | 2.1 mA |
| Features | Programmable Trip Point |
| Function | Omnipolar Switch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |

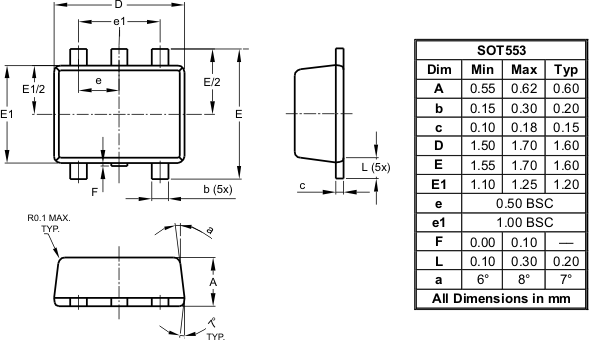

| Package / Case | SOT-553 |
| Polarization | South Pole, North Pole |
| Sensing Range | Programmable |
| Supplier Device Package | SOT-553 |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 3000 | $ 0.31 | ||
| 6000 | $ 0.29 | |||
| 9000 | $ 0.27 | |||
| 15000 | $ 0.26 | |||
| 21000 | $ 0.25 | |||
| 30000 | $ 0.24 | |||
Description
General part information
AH1892 Series
TN1.pdf
Documents
Technical documentation and resources
