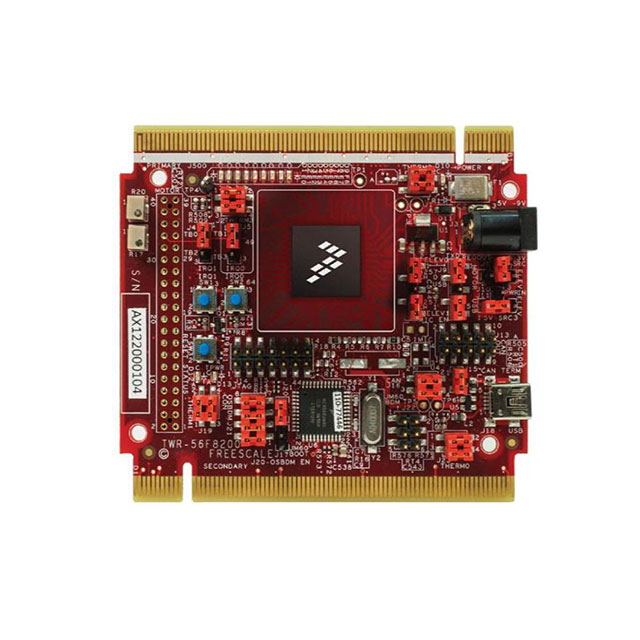

TWR-56F8200

Active

NXP USA Inc.

TOWER SYST MC56F823XX/827XX EVAL

Search across all available documentation for this part.

Active

NXP USA Inc.

TOWER SYST MC56F823XX/827XX EVAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 409.38

General part information

MC56F823xx, MC56F827xx Tower System - 56800EX DSP Embedded Evaluation Board

Technical documentation and resources

Specification	TWR-56F8200	TWR-56 Series

Board Type	Evaluation Platform	Evaluation Platform
Contents	Cable(s), Board(s)	Cable(s), Board(s)
Core Processor	56800EX	56800E, 56800EX
Mounting Type	Fixed	Fixed
Platform	Tower System	Tower System
Suggested Programming Environment	-	CodeWarrior
Type	DSP	DSP
Utilized IC / Part	MC56F823xx, MC56F827xx	MC56F8257, MC56F823xx, MC56F827xx, MC56F84789

Part	Utilized IC / Part	Board Type	Core Processor	Suggested Programming Environment	Mounting Type	Type	Platform	Contents
NXP USA Inc. TWR-56F8257	MC56F8257	Evaluation Platform	56800E	CodeWarrior	Fixed	DSP	Tower System	Board(s), Cable(s)
NXP USA Inc. TWR-56F8200	MC56F823xx, MC56F827xx	Evaluation Platform	56800EX		Fixed	DSP	Tower System	Board(s), Cable(s)
NXP USA Inc. TWR-56F8400	MC56F84789	Evaluation Platform	56800EX	CodeWarrior	Fixed	DSP	Tower System	Board(s), Cable(s)
