100024193
ActiveTelegartner Inc
ADAPT STR NF - 2.2-5F
100024193
ActiveTelegartner Inc
ADAPT STR NF - 2.2-5F
Description
General part information
100024193

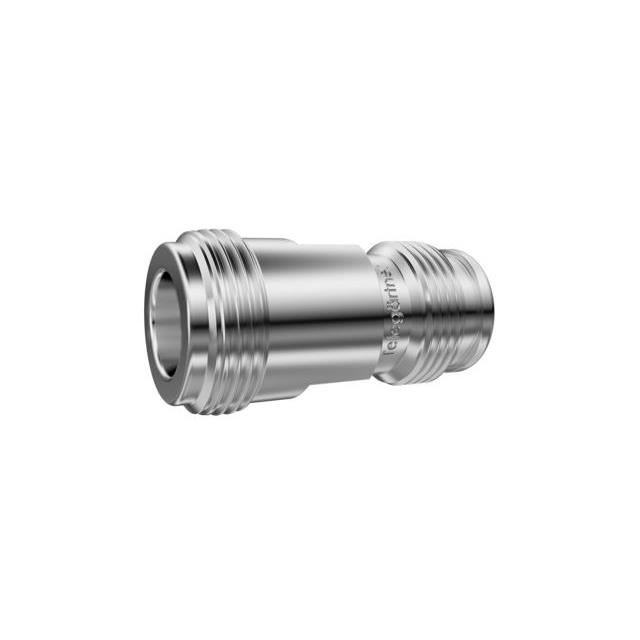

Adapter Coaxial Connector N Jack, Female Socket To 2.2/5 Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024193 |
|---|---|
| Adapter Series | N to 2.2/5 |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass, Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 2.2/5 Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
