SGD 24-M

Active

Lascar Electronics

2.4" PROG PNL METER

Search across all available documentation for this part.

Active

Lascar Electronics

2.4" PROG PNL METER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SGD 24-M	SGD 24 Series

Display Type	TFT - Color (Touch)	TFT - Color (Touch)
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Measuring Range [Max]	40 VDC	40 VDC
Measuring Range [Min]	0 V	0 V
Measuring Type	Voltage	Process, Voltage
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions	-	33 mm
Panel Cutout Dimensions [x]	74 mm	74 mm
Panel Cutout Dimensions [y]	46 mm	46 mm
Termination Style	Screw Terminal	PC Pin, Connector, Screw Terminal
Type	Voltmeter	Process Meter, Voltmeter
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	4 V	4 V

2.4" WATERPROOF PROG 4-20MA

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Measuring Range [Min]	Measuring Range [Max]	Measuring Type	Panel Cutout Dimensions [diameter]	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Display Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Lascar Electronics SGD 24-M-IP420	PC Pin	40 °C	0 °C	IP67 - Dust Tight, Waterproof	0 V	40 VDC	Process	33 mm	30 VDC	4 V	Process Meter	TFT - Color (Touch)
Lascar Electronics SGD 24-M-IP	Connector	40 °C	0 °C	IP67 - Dust Tight, Waterproof	0 V	40 VDC	Voltage	33 mm	30 VDC	4 V	Voltmeter	TFT - Color (Touch)
Lascar Electronics SGD 24-M-420	Screw Terminal						Process		30 VDC	4 V	Process Meter	TFT - Color (Touch)	74 mm	46 mm
Lascar Electronics SGD 24-M	Screw Terminal	40 °C	0 °C		0 V	40 VDC	Voltage		30 VDC	4 V	Voltmeter	TFT - Color (Touch)	74 mm	46 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

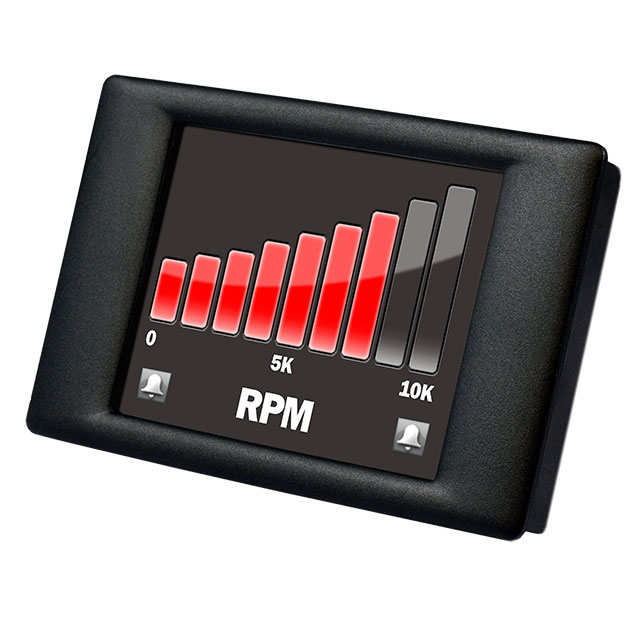

Voltmeter TFT - Color (Touch) Display Panel Mount
