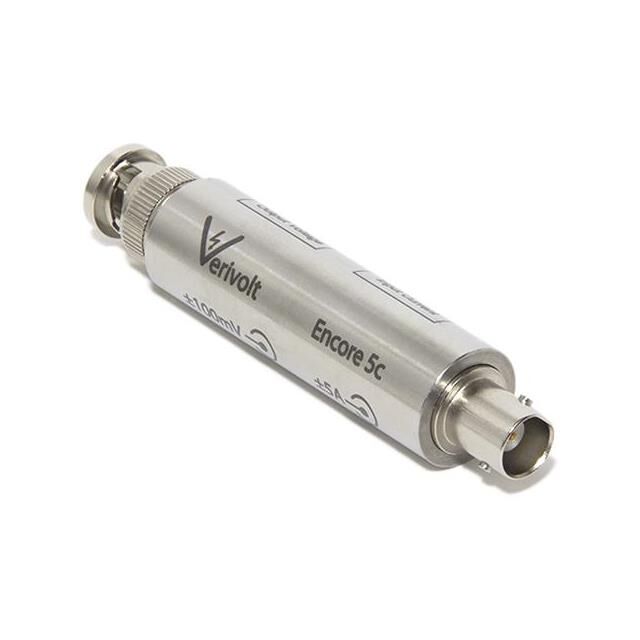

ENCORE (5A)

Active

Verivolt LLC

TRANSDUCER CURRENT SENS SHUNT 5A

Search across all available documentation for this part.

Active

Verivolt LLC

TRANSDUCER CURRENT SENS SHUNT 5A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ENCORE (5A)	ENCORE Series

Accuracy	0.2 %	0.2 %
Current - Sensing	5 A	5 A
Frequency	40 kHz	40 kHz
Input Range	-	1 - 3 A
Input Range	-	0 A
Mounting Type	Free Hanging	Free Hanging (In-Line), Free Hanging
Number of Channels	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-35 °C	-35 - -25 °C
Output	Open Collector	Open Collector
Output	-	100 mV
Package / Case	Module, Single Pass Through	Module, Single Pass Through
Response Time	8 ns	8 ns
Sensor Type	Current Transducer	Current Transducer
Termination Style	-	BNC
Type	-	Current Transducer

TRANSDUCER CURRENT SENS SHUNT 3A

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Accuracy	Mounting Type	Input Range [Max]	Input Range [Min]	Output	Current - Sensing	Number of Channels	Response Time	Package / Case	Sensor Type	Frequency	Output
Verivolt LLC ENCORE (3A)	Current Transducer	70 °C	-25 °C	BNC	0.2 %	Free Hanging (In-Line)	3 A	0 A	100 mV
Verivolt LLC ENCORE (5A)		70 °C	-35 °C		0.2 %	Free Hanging				5 A	1	8 ns	Module, Single Pass Through	Current Transducer	40 kHz	Open Collector
Verivolt LLC ENCORE (1A)	Current Transducer	70 °C	-35 °C	BNC	0.2 %	Free Hanging (In-Line)	1 A	0 A	100 mV			8 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 285.73

General part information

Current Sensor 5A 1 Channel Current Transducer Module, Single Pass Through
