86280-2

Active

TE Connectivity AMP Connectors

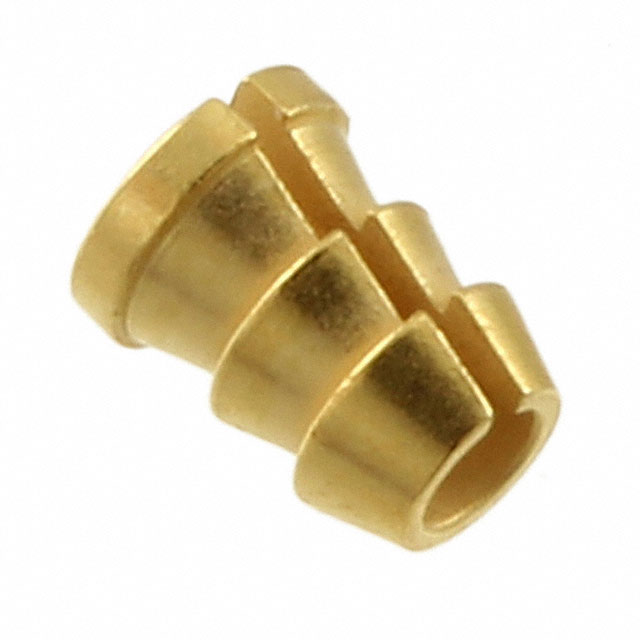

BUSHING SPLIT 0.043" BRASS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

BUSHING SPLIT 0.043" BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	86280-2

Bushing, Grommet Type	Bushing, Split
Diameter - Inside [diameter]	1.09 mm
Diameter - Inside [diameter]	0.043 "
For Use With/Related Products	Wires, Cable
Material	Brass
Panel Cutout Dimensions [diameter]	0.085 in
Panel Cutout Dimensions [diameter]	2.16 mm
Panel Thickness	0.105 in
Panel Thickness	2.67 mm

BUSHING SPLIT 0.043" BRASS

Part	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	For Use With/Related Products	Panel Thickness	Panel Thickness	Material	Bushing, Grommet Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]
TE Connectivity AMP Connectors 86280-2	0.085 in	2.16 mm	Cable, Wires	0.105 in	2.67 mm	Brass	Bushing, Split	1.09 mm	0.043 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2500	$ 10.37

General part information

Circular - 0.085" (2.16mm) Bushing, Split 0.043" (1.09mm)
