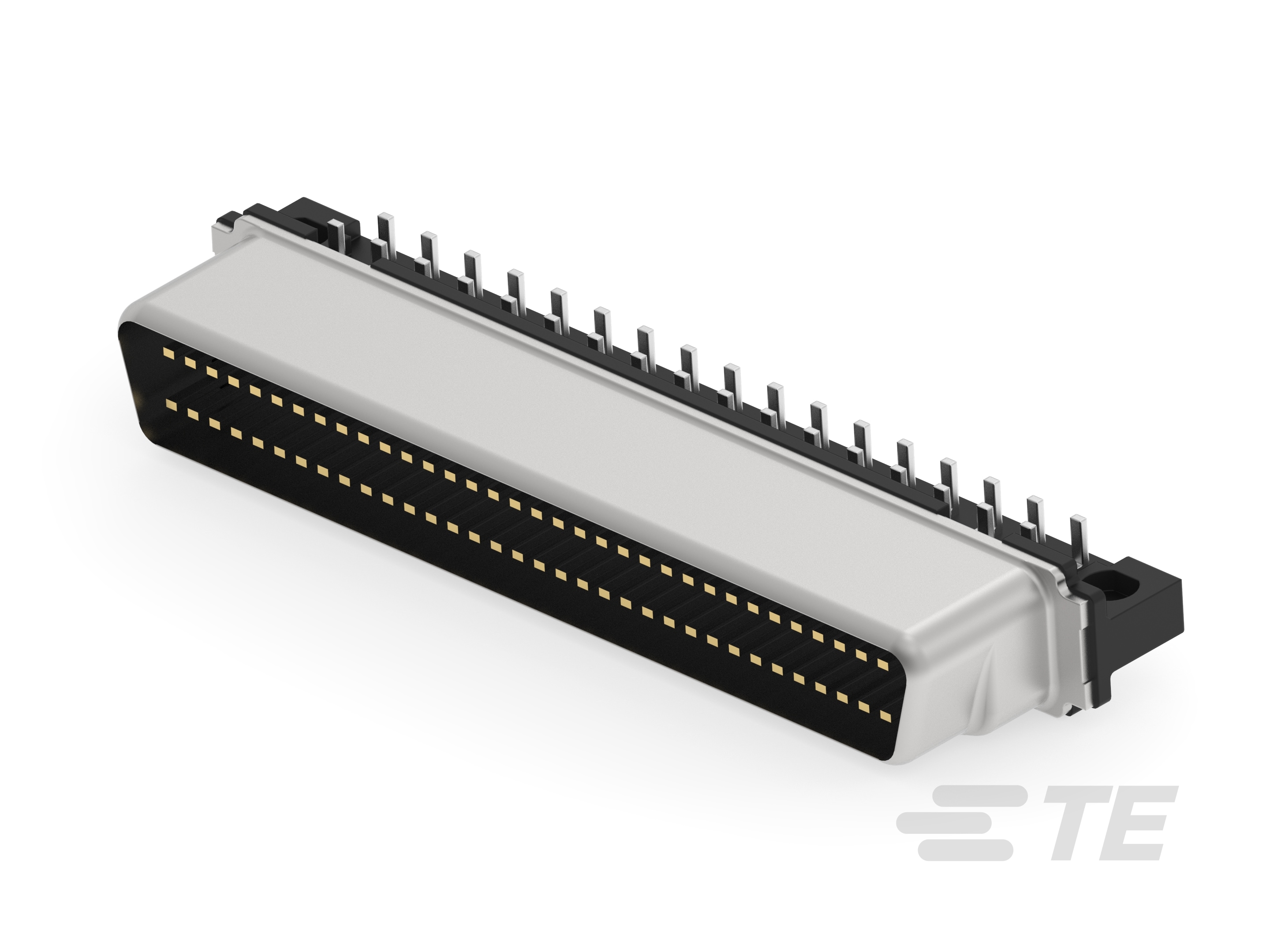

Specification	749109-5

Color	Black
Connector Layout Pitch	0.05
Connector Layout Row to Row	0.1
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating	1 A
Features	Shielded
Finish	Tin-Nickel Plated
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	68
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Termination	IDC, Ribbon Cable
Voltage Rating	30 V

AMPLIMITE 0.50 Series Series

D-Sub Standard Connectors 50 50SR VERT RCPT

...

Part	Material Flammability Rating	Connector Style	Finish	Shell Material	Number of Rows	Contact Type	Termination	Number of Positions	Features	Connector Layout Row to Row	Connector Layout Pitch	Connector Type	Mounting Type	Contact Finish	Current Rating	For Use With/Related Products	Accessory Type	Operating Temperature (Min)	Operating Temperature (Max)	Color	Contact Material	Voltage Rating	Dielectric Material	Contact Finish Thickness	Flange Feature	Flange Feature Maximum	Flange Feature Minimum	Backset Spacing
TE Connectivity AMP Connectors 5749111-1	UL94 V-0	D-Type	Tin-Nickel Plated	Steel	2	Signal	IDC Ribbon Cable	20	Shielded	0.1	0.05	Male Pins Plug	Free Hanging (In-Line)	Gold	1 A
TE Connectivity AMP Connectors 1-750877-2								26								AMPLIMITE Series 0.050 III	Terminating Cover
TE Connectivity AMP Connectors 5749110-2	UL94 V-0		Tin-Nickel Plated	Steel	2	Signal	IDC Ribbon Cable	26	Shielded	0.1	0.05	Male Pins Plug	Free Hanging (In-Line)	Gold	1 A			-55 °C	105 °C	Black	Phosphor Bronze	30 V
TE Connectivity AMP Connectors 5175710-5	UL94 V-0	Board to Board D-Type			2	Signal	Kinked Pin	20		0.1	0.05	Female Sockets Plug	Through Hole	Gold	1 A			-55 °C	105 °C	Black	Copper Alloy	100 VAC	Thermoplastic	8 µin
TE Connectivity AMP Connectors 5173280-1	UL94 V-0	Board to Board D-Type			2	Signal	Solder	30		0.1	0.05	Cap Male Pins	Through Hole	Gold	1 A			-55 °C	105 °C	Black	Copper Alloy	100 VAC	Thermoplastic	8 µin	Housing Shell (Unthreaded)
TE Connectivity AMP Connectors 5787082-3	UL94 V-0	D-Type	Nickel Plated	Steel	2	Signal	Solder	28	Board Lock Shielded	0.1	0.05	Female Sockets Receptacle	Board Edge Right Angle Through Hole	Gold	1 A										Housing/Shell Latchblocks	56	2	0.146 in
TE Connectivity AMP Connectors 5787082-5	UL94 V-0	D-Type	Nickel Plated	Steel	2	Signal	Solder	50	Board Lock Shielded	0.1	0.05	Female Sockets Receptacle	Board Edge Right Angle Through Hole	Gold	1 A			-55 °C	105 °C	Black	Phosphor Bronze	30 V	Thermoplastic		Housing/Shell Latchblocks	56	2	0.146 in
TE Connectivity AMP Connectors 5787169-7	UL94 V-0	D-Type	Nickel Plated	Steel	2	Signal	Solder	68	Shielded	0.1	0.05	Female Sockets Receptacle	Board Edge Right Angle Through Hole	Gold	1 A			-55 °C	105 °C	Black	Phosphor Bronze	30 V	Thermoplastic		Housing Shell (4-40)			0.146 in
TE Connectivity AMP Connectors 5749111-8	UL94 V-0	D-Type	Tin-Nickel Plated	Steel	2	Signal	IDC Ribbon Cable	100	Shielded	0.1	0.05	Male Pins Plug	Free Hanging (In-Line)	Gold	1 A
TE Connectivity AMP Connectors 749894-5								50								D-Sub Connectors Male	Cap (Cover) Dust
