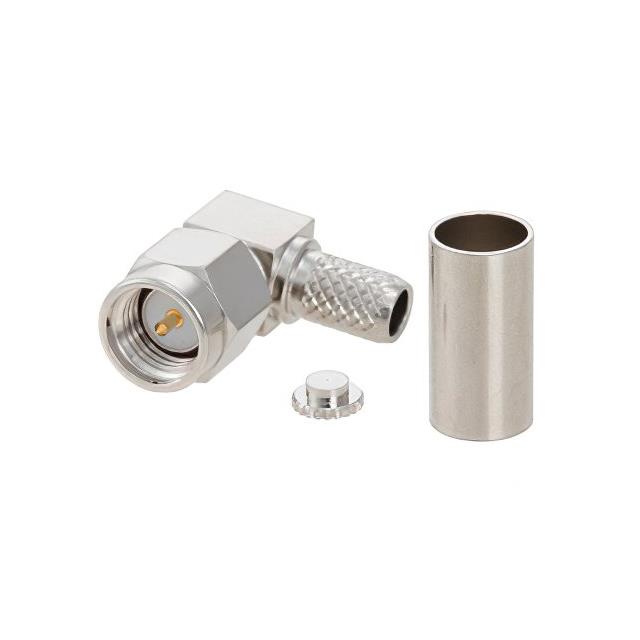

PE4002
ActivePasternack
SMA MALE RIGHT ANGLE CONNECTOR C
PE4002
ActivePasternack
SMA MALE RIGHT ANGLE CONNECTOR C
Description
General part information
PE4002
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4002 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 400, RG-55, 141, 142, 223 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 12.4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
