NME2415DC

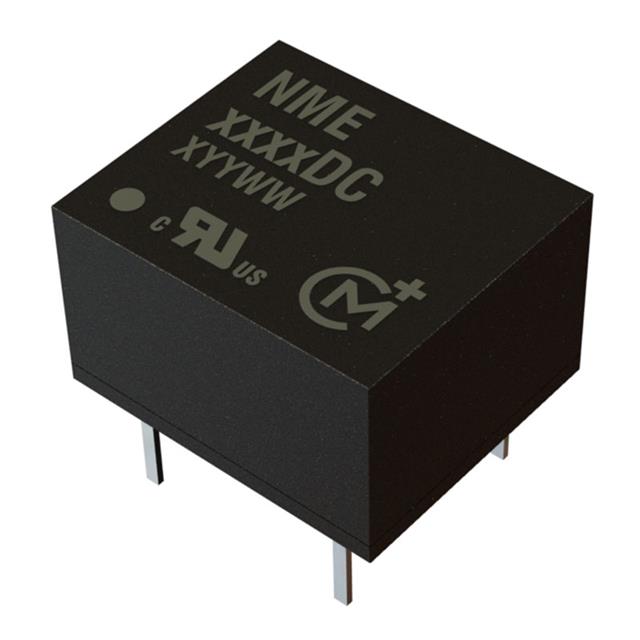

ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 1:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Search across all available documentation for this part.
NME2415DC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 1:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NME2415DC | NME24 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 66 mA | 66 - 200 mA |
| Efficiency | 80 % | 70 - 80 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 8-DIP Module | 8-DIP Module, 4-SIP Module |
| Package / Case | 4 Lead | 4 Lead |
| Size / Dimension [x] | 9.9 mm | 9.9 mm |
| Size / Dimension [x] | 0.39 " | 0.39 " |
| Size / Dimension [y] | 0.45 in | 0.45 in |
| Size / Dimension [y] | 11.4 mm | 11.4 mm |
| Size / Dimension [z] | 6.9 mm | 6.9 mm |
| Size / Dimension [z] | 0.27 " | 0.27 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V | 21.6 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 15 V | 5 - 15 V |
NME24 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 1:1, 1 W, 1 OUTPUT, 15 V
| Part | Mounting Type | Type | Voltage - Output 1 | Package / Case | Package / Case | Voltage - Isolation | Efficiency | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Applications | Voltage - Input (Max) [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NME2415DC | Through Hole | Isolated Module | 15 V | 8-DIP Module | 4 Lead | 1000 V | 80 % | 21.6 V | 66 mA | ITE (Commercial) | 26.4 V | 1 | 70 °C | 0 °C | 9.9 mm | 0.45 in | 0.39 " | 6.9 mm | 11.4 mm | 0.27 " |
Murata Power Solutions Inc. NME2412SC | Through Hole | Isolated Module | 12 V | 4-SIP Module | 1000 V | 80 % | 21.6 V | 83 mA | ITE (Commercial) | 26.4 V | 1 | 70 °C | 0 °C | |||||||
Murata Power Solutions Inc. NME2405SC | Through Hole | Isolated Module | 5 V | 4-SIP Module | 1000 V | 70 % | 21.6 V | 200 mA | ITE (Commercial) | 26.4 V | 1 | 70 °C | 0 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NME24 Series
The NME2415DC is an isolated single-output DC/DC Converter particularly suited to isolating and converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist.
