1-104656-0
ActiveTE Connectivity AMP Connectors

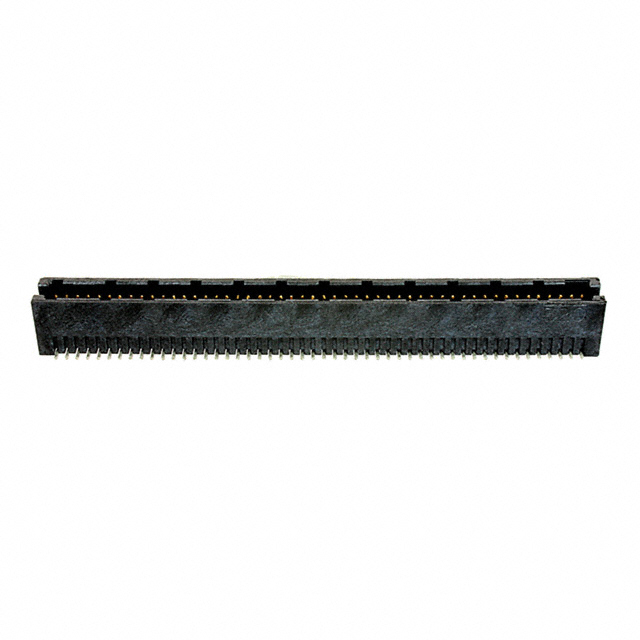

CONN HEADER SMD 100POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-104656-0
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD 100POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-104656-0 | 104656 Series |
|---|---|---|
| Applications | Military, Telecommunications, General Purpose, Automotive, Medical | Military, Telecommunications, General Purpose, Automotive, Medical |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Mating | 3.05 mm | 3.05 mm |
| Contact Length - Mating | 0.12 in | 0.12 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 500 mA | 500 mA |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.298 in | 0.298 in |
| Insulation Height | 7.57 mm | 7.57 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 8.13 mm | 8.13 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 100 | 10 - 100 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating | 0.05 in | 0.05 in |
| Row Spacing - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 648 | $ 10.96 | |
104656 Series
CONN HEADER SMD 30POS 1.27MM
| Part | Contact Finish - Post | Insulation Color | Contact Length - Mating | Contact Length - Mating | Connector Type | Contact Shape | Number of Positions Loaded | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Mated Stacking Heights | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Mounting Type | Applications | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Contact Material | Current Rating (Amps) | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Number of Positions | Fastening Type | Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104656-3 | Tin | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 30 | Push-Pull | Solder | Male Pin |
TE Connectivity AMP Connectors 5-104656-8 | Tin | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 80 | Push-Pull | Solder | Male Pin |
TE Connectivity AMP Connectors 5-104656-2 | Tin | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 20 | Push-Pull | Solder | Male Pin |
TE Connectivity AMP Connectors 5-104656-1 | Tin | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 10 | Push-Pull | Solder | Male Pin |
TE Connectivity AMP Connectors 104656-7 | Tin-Lead | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 70 | Push-Pull | Solder | Male Pin |
TE Connectivity AMP Connectors 104656-9 | Tin-Lead | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 90 | Push-Pull | Solder | Male Pin |
TE Connectivity AMP Connectors 1-104656-0 | Tin-Lead | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 100 | Push-Pull | Solder | Male Pin |
TE Connectivity AMP Connectors 5-104656-4 | Tin | Black | 3.05 mm | 0.12 in | Header | Circular | All | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | 8.13 mm | UL94 V-0 | 30 Áin | 0.76 Ám | 0.298 in | 7.57 mm | Surface Mount | Automotive, General Purpose, Medical, Military, Telecommunications | 2 | 150 Áin | 3.81 Ám | Shrouded - 4 Wall | Phosphor Bronze | 500 mA | Gold | -65 ░C | 105 ░C | 0.05 in | 1.27 mm | 40 | Push-Pull | Solder | Male Pin |
Description
General part information
104656 Series
Connector Header Surface Mount 100 position 0.050" (1.27mm)
