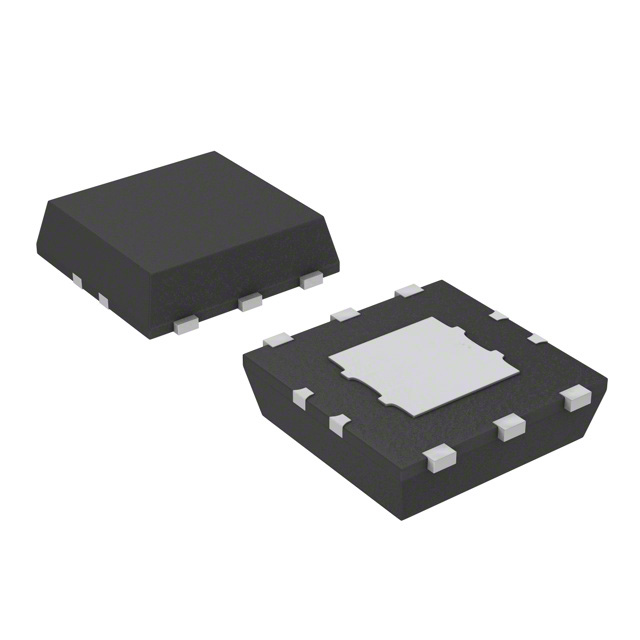

S-1131B20PD-N4FTFG

Obsolete

ABLIC Inc.

IC REG LINEAR 2V 300MA 6-HSON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S-1131B20PD-N4FTFG

Obsolete

ABLIC Inc.

IC REG LINEAR 2V 300MA 6-HSON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S-1131B20PD-N4FTFG	S-1131 Series

Control Features	Enable	Enable
Current - Output	300 mA	300 mA
Current - Quiescent (Iq)	1 µA	1 µA
Current - Supply (Max) [Max]	65 µA	65 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	6-SMD, Flat Leads Exposed Pad	SOT-89-5/6, TO-243AA, 6-SMD, Flat Leads Exposed Pad
Protection Features	Over Current	Over Current
PSRR	70 dB	70 dB
Supplier Device Package	6-HSON (A) (2.9x2.8)	SOT-89-5, SOT-89-3, 6-HSON (A) (2.9x2.8)
Supplier Device Package [x]	2.9	2.9
Supplier Device Package [y]	2.8	2.8
Voltage - Input (Max) [Max]	6.5 V	6.5 V
Voltage - Output (Min/Fixed)	-	1.5 - 5.5 V
Voltage - Output (Min/Fixed) [Min]	2 V	2 - 5.1 V
Voltage Dropout (Max) [Max]	0.6 V	0.28 - 1.05 V

S-1131 Series

IC REG LINEAR 2.5V 300MA SOT89-5

...

Part	Package / Case	PSRR	Supplier Device Package	Protection Features	Mounting Type	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Output Configuration	Voltage - Output (Min/Fixed)	Output Type	Current - Output	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Control Features	Current - Supply (Max) [Max]	Supplier Device Package [y]	Supplier Device Package [x]
ABLIC Inc. S-1131B25UC-N4KTFG	SOT-89-5/6	70 dB	SOT-89-5	Over Current	Surface Mount	1 µA	6.5 V	Positive	2.5 V	1.81 mOhm	300 mA	0.49 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B46UA-N5FTFG	TO-243AA	70 dB	SOT-89-3	Over Current	Surface Mount	1 µA	6.5 V	Positive	4.6 V	1.81 mOhm	300 mA	0.28 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B46UC-N5FTFU	SOT-89-5/6	70 dB	SOT-89-5	Over Current	Surface Mount	1 µA	6.5 V	Positive	4.6 V	1.81 mOhm	300 mA	0.28 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B38PD-N4XTFG	6-SMD, Flat Leads Exposed Pad	70 dB	6-HSON (A) (2.9x2.8)	Over Current	Surface Mount	1 µA	6.5 V	Positive	3.8 V	1.81 mOhm	300 mA	0.28 V	85 °C	-40 °C	1	Enable	65 µA	2.8	2.9
ABLIC Inc. S-1131B26UA-N4LTFG	TO-243AA	70 dB	SOT-89-3	Over Current	Surface Mount	1 µA	6.5 V	Positive	2.6 V	1.81 mOhm	300 mA	0.34 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B16UC-N4BTFU	SOT-89-5/6	70 dB	SOT-89-5	Over Current	Surface Mount	1 µA	6.5 V	Positive	1.6 V	1.81 mOhm	300 mA	0.95 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B54UA-N5NTFG	TO-243AA	70 dB	SOT-89-3	Over Current	Surface Mount	1 µA	6.5 V	Positive	5.4 V	1.81 mOhm	300 mA	0.28 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B48UA-N5HTFU	TO-243AA	70 dB	SOT-89-3	Over Current	Surface Mount	1 µA	6.5 V	Positive	4.8 V	1.81 mOhm	300 mA	0.28 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B24UC-N4JTFU	SOT-89-5/6	70 dB	SOT-89-5	Over Current	Surface Mount	1 µA	6.5 V	Positive	2.4 V	1.81 mOhm	300 mA	0.49 V	85 °C	-40 °C	1	Enable	65 µA
ABLIC Inc. S-1131B18UC-N4DTFU	SOT-89-5/6	70 dB	SOT-89-5	Over Current	Surface Mount	1 µA	6.5 V	Positive	1.8 V	1.81 mOhm	300 mA	0.75 V	85 °C	-40 °C	1	Enable	65 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

S-1131 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-HSON (A) (2.9x2.8)
