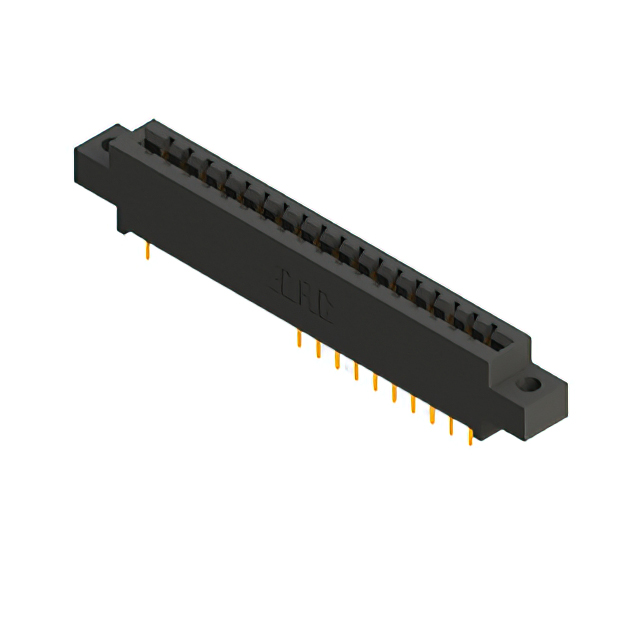

387-036-540-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-036-540-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-036-540-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-036 Series
...
| Part | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Material - Insulation | Color | Pitch [x] | Pitch [x] | Read Out | Number of Positions/Bay/Row [custom] | Termination | Termination Rows | Contact Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Gender | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Through Hole | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Wire Wrap | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | |||
EDAC Inc. | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 36 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Through Hole | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Single | 36 | Solder | 1 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | |||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | 4-40 Threaded Insert Top Mount Opening | Through Hole Right Angle | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Wire Wrap | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Through Hole Right Angle | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Wire Wrap | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | |||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | Through Hole | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Solder | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Through Hole | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Solder | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | |||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | 4-40 Threaded Insert Top Mount Opening | Through Hole | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Solder | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | 4-40 Threaded Insert Top Mount Opening | Through Hole | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Wire Wrap | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Board Edge Straddle Mount | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Solder | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | Card Extender | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 36 | M3 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Polyester Thermoplastic | Black | 0.156 in | 3.96 mm | Dual | 18 | Solder | 2 | Cantilever | Gold | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Female | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-036 Series
36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
