3090
ActiveKeystone Electronics

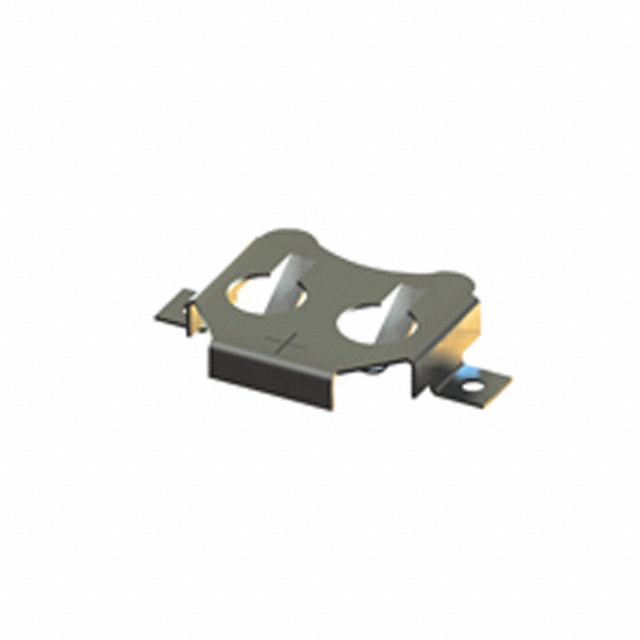

BATTERY RETAINER COIN 23MM SMD
3090
ActiveKeystone Electronics
BATTERY RETAINER COIN 23MM SMD
Description
General part information
3090
Battery Retainer Coin, 23.0mm 1 Cell SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | 3090 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 23 mm |
| Battery Series | 2354 |
| Battery Type | Coin Cell |
| Function | Retainer |
| Height Above Board | 0.24 in |
| Mounting Type | Surface Mount, PCB |
| Number of Cells | 1 |
| Style | Retainer |
| Termination Style | SMD (SMT) Tab |
