Description
General part information

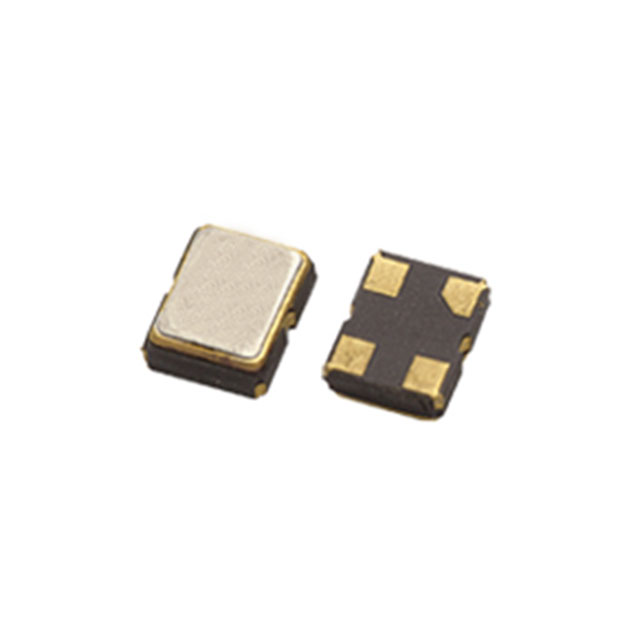

PYETGLJANF-22.579200
22.5792 MHz XO (Standard) CMOS Oscillator 2.8V ~ 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | PYETGLJANF-22.579200 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 15 µA |
| Current - Supply (Max) | 10 mA |
| Frequency | 22.5792 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 2.8 V |
