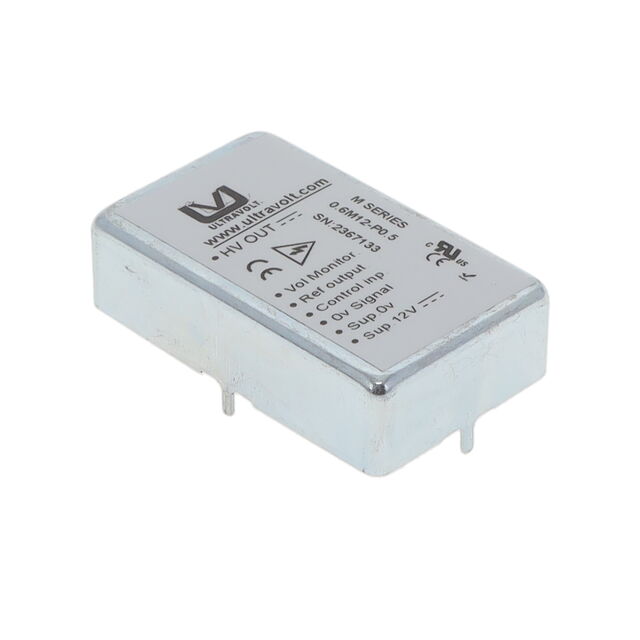

0.6M12-P0.5

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 600V 15W

Search across all available documentation for this part.

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 600V 15W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High Voltage - Isolated Module DC DC Converter 1 Output 600V 830µA 11V - 13V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	0.6M12-P0.5	0.6M12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus, UL, cUL	CE, cURus, UL, cUL
Current - Output (Max) [Max]	830 µA	830 µA
Features	Adjustable Output	Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Package / Case	9-SIP Module, 7 Leads	9-SIP Module, 7 Leads
Power (Watts)	0.5 W	0.5 - 15 W
Size / Dimension [x]	47 mm	47 mm
Size / Dimension [x]	1.85 in	1.85 in
Size / Dimension [y]	28 mm	28 mm
Size / Dimension [y]	1.1 in	1.1 in
Size / Dimension [z]	0.49 in	0.49 in
Size / Dimension [z]	12.5 mm	12.5 mm
Type	High Voltage - Isolated Module	High Voltage - Isolated Module
Voltage - Input (Max) [Max]	13 V	13 V
Voltage - Input (Min) [Min]	11 V	11 V
Voltage - Output 1	600 V	600 V

DC DC CONVERTER 600V 15W

Part	Current - Output (Max) [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Features	Number of Outputs	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Power (Watts)	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]
ULTRAVOLT / Advanced Energy 0.6M12-P0.5-WS	830 µA	ITE (Commercial)	-10 °C	65 °C	Through Hole	CE, cUL, cURus, UL	Adjustable Output	1	High Voltage - Isolated Module	11 V	13 V	600 V	15 W	9-SIP Module, 7 Leads	47 mm	1.85 in	0.49 in	28 mm	12.5 mm	1.1 in
ULTRAVOLT / Advanced Energy 0.6M12-P0.5	830 µA	ITE (Commercial)	-10 °C	65 °C	Through Hole	CE, cUL, cURus, UL	Adjustable Output	1	High Voltage - Isolated Module	11 V	13 V	600 V	0.5 W	9-SIP Module, 7 Leads	47 mm	1.85 in	0.49 in	28 mm	12.5 mm	1.1 in
ULTRAVOLT / Advanced Energy 0.6M12-N0.5-WS	830 µA	ITE (Commercial)	-10 °C	65 °C	Through Hole	CE, cUL, cURus, UL	Adjustable Output	1	High Voltage - Isolated Module	11 V	13 V	600 V	15 W	9-SIP Module, 7 Leads	47 mm	1.85 in	0.49 in	28 mm	12.5 mm	1.1 in
