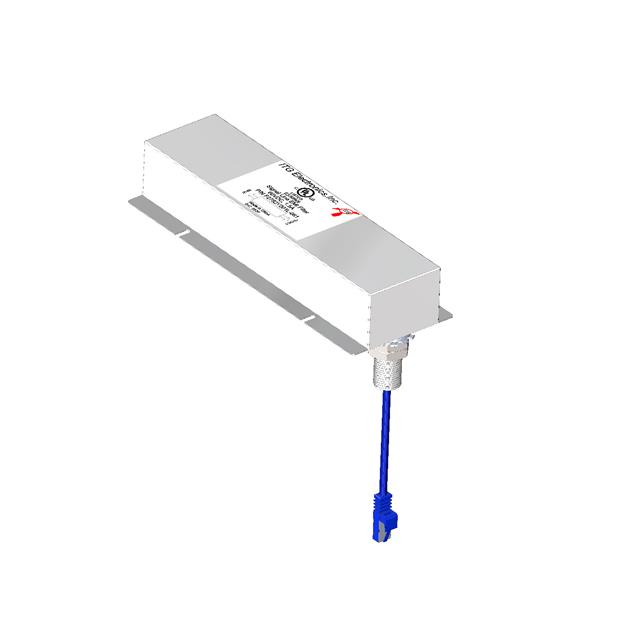

F2782Y001L-061
ActiveITG Electronics, Inc.
1 CHANNEL 1.5A CAT6A DATA LINE A
F2782Y001L-061
ActiveITG Electronics, Inc.
1 CHANNEL 1.5A CAT6A DATA LINE A
Description
General part information
F2782Y001L-061
LC (T-Type) EMI Filter 5th Order Low Pass 1 Channel 1.5 A Module
Technical Specifications
Parameters and characteristics for this part
| Specification | F2782Y001L-061 |
|---|---|
| Applications | Data Lines for Mobile Devices |
| Attenuation Value | 100 dB |
| Current | 1.5 A |
| ESD Protection | No |
| Filter Order | 5 |
| Height | 2.047 in |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Module |
| Size / Dimension Length | 11.181 in |
| Size / Dimension Width | 3.937 in |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Voltage - Rated | 60 VDC |
