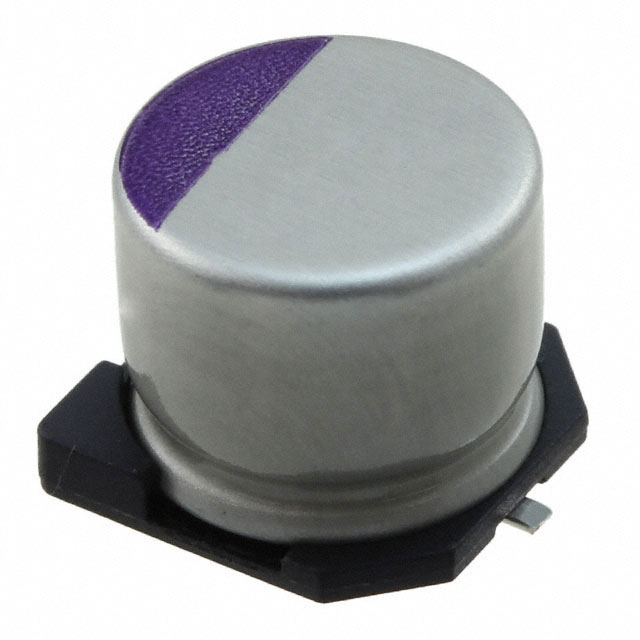

10SVPS330M
ActivePanasonic Industrial Automation Sales
CAP ALUM POLY 330UF 20% 10V SMD
Deep-Dive with AI
Search across all available documentation for this part.
10SVPS330M
ActivePanasonic Industrial Automation Sales
CAP ALUM POLY 330UF 20% 10V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10SVPS330M |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 24 mOhms |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ Low Frequency | 188.5 mA |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Surface Mount Land Size [x] | 0.406 in |
| Surface Mount Land Size [x] | 10.3 mm |
| Surface Mount Land Size [y] | 10.3 mm |
| Surface Mount Land Size [y] | 0.406 " |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.84 | |
| 10 | $ 1.26 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.04 | |||
| Digi-Reel® | 1 | $ 1.84 | ||
| 10 | $ 1.26 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.04 | |||
| Tape & Reel (TR) | 500 | $ 0.82 | ||
Description
General part information
10SVPS330M
330 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 5000 Hrs @ 105°C
