MEA1D0509DC

Active

Murata Power Solutions Inc.

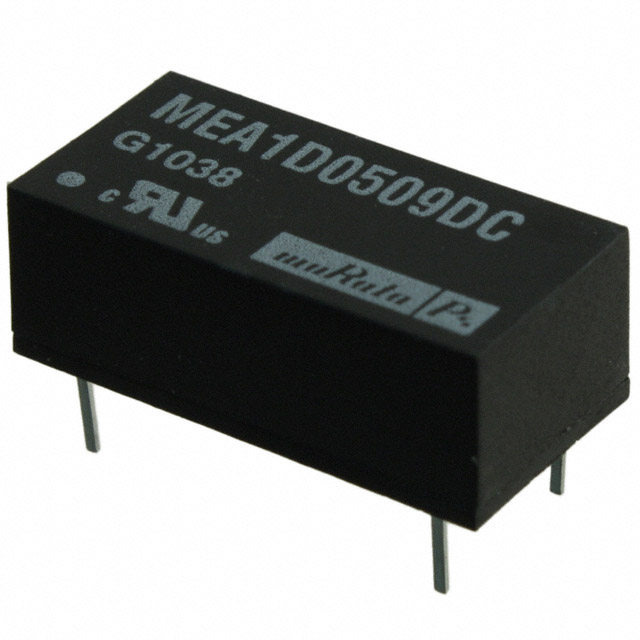

DC DC CONVERTER +/-9V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-9V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MEA1D0509DC	MEA1D05 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	42 mA
Efficiency	86.7 %	85 - 87 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	14-DIP Module, 6 Leads, 6-SIP Module, 5 Leads
Size / Dimension [x]	0.78 "	0.77 - 0.78 "
Size / Dimension [x]	19.7 mm	19.6 - 19.7 mm
Size / Dimension [y]	0.39 "	0.24 - 0.39 "
Size / Dimension [y]	10 mm	6.1 - 10 mm
Size / Dimension [z]	0.28 "	0.28 - 0.4 "
Size / Dimension [z]	7 mm	7 - 10.2 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	9 V	5 - 12 V
Voltage - Output 2	-9 V	-12 - -5 V

DC DC CONVERTER +/-9V 1W

Part	Mounting Type	Applications	Voltage - Output 2	Voltage - Isolation	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Package / Case	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Murata Power Solutions Inc. MEA1D0509DC	Through Hole	ITE (Commercial)	-9 V	1000 V	2	9 V	5.5 V	86.7 %	85 °C	-40 °C	4.5 V	14-DIP Module, 6 Leads	Isolated Module	0.78 "	0.39 "	10 mm	19.7 mm	0.28 "	7 mm
Murata Power Solutions Inc. MEA1D0505SC	Through Hole	ITE (Commercial)	-5 V	1000 V	2	5 V	5.5 V	85 %	85 °C	-40 °C	4.5 V	6-SIP Module, 5 Leads	Isolated Module	0.77 in	0.24 "	6.1 mm	19.6 mm	0.4 "	10.2 mm	100 mA	100 mA
Murata Power Solutions Inc. MEA1D0512DC	Through Hole	ITE (Commercial)	-12 V	1000 V	2	12 V	5.5 V	87 %	85 °C	-40 °C	4.5 V	14-DIP Module, 6 Leads	Isolated Module	0.78 "	0.39 "	10 mm	19.7 mm	0.28 "	7 mm			42 mA	42 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 4.5V - 5.5V Input
