Description
General part information

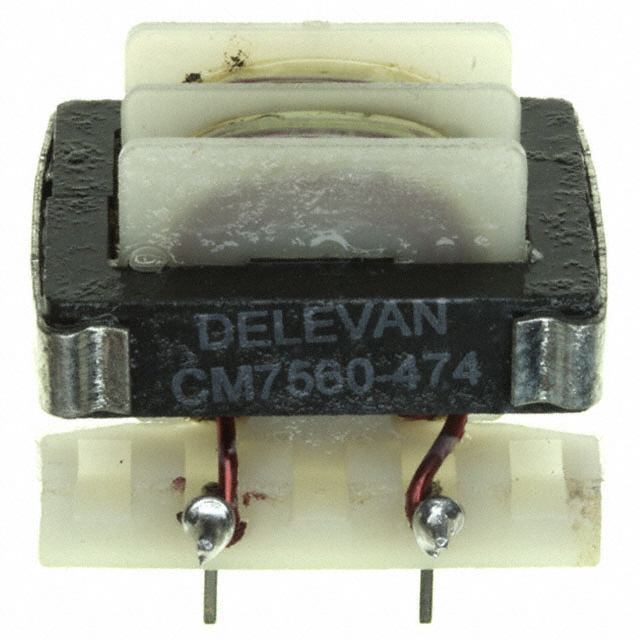

CM7560-474
470 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 30mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM7560-474 |
|---|---|
| Current Rating (Max) | 3.5 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Height (Max) | 0.861 in |
| Inductance | 470 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.071 in |
| Size / Dimension Width | 0.858 in |
