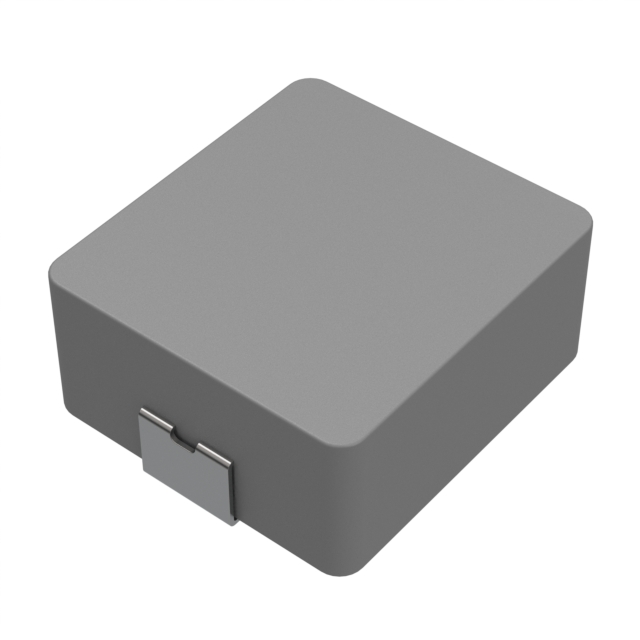

CMLE105T-6R8MS

Active

Delta Electronics/Cyntec

FIXED IND 6.8UH 9A 16.3 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMLE105T-6R8MS

Active

Delta Electronics/Cyntec

FIXED IND 6.8UH 9A 16.3 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMLE105T-6R8MS	CMLE105T Series

Current - Saturation (Isat)	-	11 - 36 A
Current Rating (Amps)	-	7.6 - 25.5 A
DC Resistance (DCR)	16.3 mOhm	7.5 - 16.3 mOhm
DC Resistance (DCR)	-	2.5 - 23 mOhm
Height - Seated (Max) [Max] [z]	0.197 in	0.197 in
Height - Seated (Max) [Max] [z]	5 mm	5 mm
Inductance	6.8 µH	1 - 10 ÁH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	0.427 "	0.427 - 0.439 "
Size / Dimension [x]	10.85 mm	10.85 - 11.15 mm
Size / Dimension [y]	10 mm	10 mm
Size / Dimension [y]	0.394 in	0.394 in
Tolerance	20 %	20 %

CMLE105T Series

FIXED IND 4.7UH 10.5A 11.5 MOHM

Part	Tolerance	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Mounting Type	Inductance Frequency - Test	Shielding	Current Rating (Amps)	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Delta Electronics/Cyntec CMLE105T-4R7MS	20 %	19 A	10 mm	0.394 in	0.427 "	10.85 mm	Nonstandard	Surface Mount	100 kHz	Shielded	10.5 A	4.7 ÁH	-55 °C	125 °C	0.197 in	5 mm	Metal	11.5 mOhm
Delta Electronics/Cyntec CMLE105T-1R5MS	20 %	30 A	10 mm	0.394 in	0.439 in	11.15 mm	Nonstandard	Surface Mount	100 kHz	Shielded	24 A	1.5 µH	-55 °C	125 °C	0.197 in	5 mm	Metal	3 mOhm
Delta Electronics/Cyntec CMLE105T-5R6MS	20 %	13 A	10 mm	0.394 in	0.427 "	10.85 mm	Nonstandard	Surface Mount	100 kHz	Shielded	10 A	5.6 µH	-55 °C	125 °C	0.197 in	5 mm	Metal	15 mOhm
Delta Electronics/Cyntec CMLE105T-2R2MS	20 %	26 A	10 mm	0.394 in	0.439 in	11.15 mm	Nonstandard	Surface Mount	100 kHz	Shielded	19.5 A	2.2 µH	-55 °C	125 °C	0.197 in	5 mm	Metal	4.5 mOhm
Delta Electronics/Cyntec CMLE105T-100MS	20 %	11 A	10 mm	0.394 in	0.427 "	10.85 mm	Nonstandard	Surface Mount	100 kHz	Shielded	7.6 A	10 µH	-55 °C	125 °C	0.197 in	5 mm	Metal	23 mOhm
Delta Electronics/Cyntec CMLE105T-3R3MS	20 %	22 A	10 mm	0.394 in	0.427 "	10.85 mm	Nonstandard	Surface Mount	100 kHz	Shielded	15 A	3.3 µH	-55 °C	125 °C	0.197 in	5 mm	Metal		7.5 mOhm
Delta Electronics/Cyntec CMLE105T-6R8MS	20 %		10 mm	0.394 in	0.427 "	10.85 mm	Nonstandard	Surface Mount	100 kHz	Shielded		6.8 µH	-55 °C	125 °C	0.197 in	5 mm	Metal		16.3 mOhm
Delta Electronics/Cyntec CMLE105T-1R0MS	20 %	36 A	10 mm	0.394 in	0.439 in	11.15 mm	Nonstandard	Surface Mount	100 kHz	Shielded	25.5 A	1 µH	-55 °C	125 °C	0.197 in	5 mm	Metal	2.5 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.48
		10	$ 1.25
		25	$ 1.14
		50	$ 1.07
		100	$ 0.89
		250	$ 0.82
	Digi-Reel®	1	$ 1.48
		10	$ 1.25
		25	$ 1.14
		50	$ 1.07
		100	$ 0.89
		250	$ 0.82
	Tape & Reel (TR)	500	$ 0.56

Description

General part information

CMLE105T Series

6.8 µH Shielded Inductor 9 A 16.3mOhm Max Nonstandard
