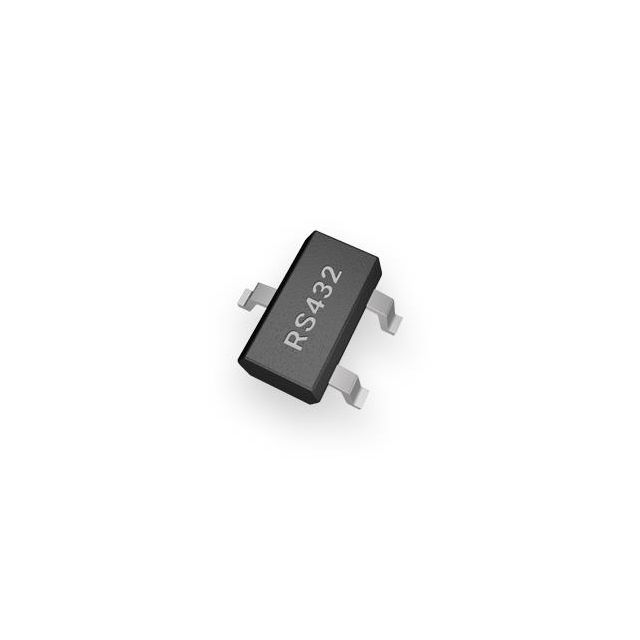

RS432AYSF3
ActiveRunic Technology
IC VREF SHUNT ADJ 0.5% SOT23
Deep-Dive with AI
Search across all available documentation for this part.
RS432AYSF3
ActiveRunic Technology
IC VREF SHUNT ADJ 0.5% SOT23
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS432AYSF3 |
|---|---|
| Current - Cathode [custom] | 500 µA |
| Current - Output | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Programmable |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | 50 ppm/°C |
| Voltage - Output (Max) [Max] | 36 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.62 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.09 | |||
Description
General part information
RS432AYSF3
Shunt Voltage Reference IC Programmable 2.5V 36 VV ±0.5% 100 mA SOT-23-3
Documents
Technical documentation and resources
No documents available
