13282-18PG-326
ActiveConxall/Switchcraft

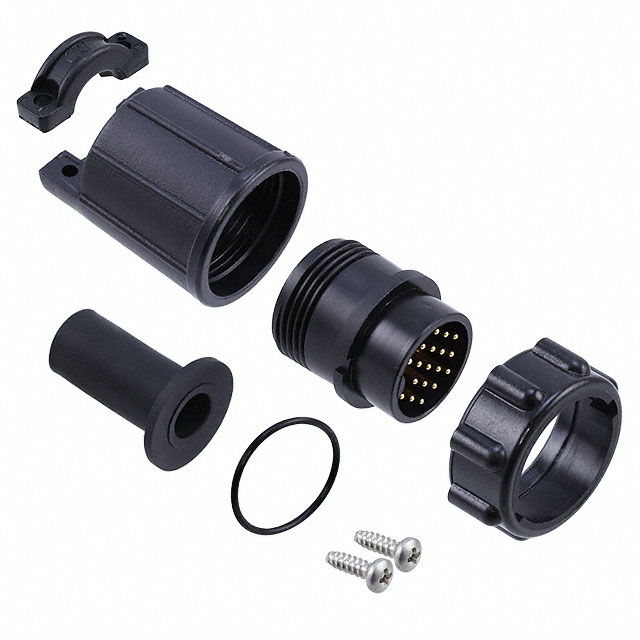

CONN PLUG MALE 18P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
13282-18PG-326
ActiveConxall/Switchcraft
CONN PLUG MALE 18P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 13282-18PG-326 | 13282-18P Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.21 in |
| Cable Opening | - | 5.33 mm |
| Cable Opening | - | 6.35 mm |
| Cable Opening | - | 0.25 in |
| Cable Opening [Max] [diameter] | 7.62 mm | 7.62 mm |
| Cable Opening [Max] [diameter] | 0.3 in | 0.3 in |
| Cable Opening [Min] [diameter] | 0.26 in | 0.26 in |
| Cable Opening [Min] [diameter] | 6.6 mm | 6.6 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 18 | 18 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
13282-18P Series
CONN PLUG MALE 18P GOLD SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish - Mating | Voltage Rating | Ingress Protection | Contact Material | Number of Positions | Orientation | Color | Mounting Type | Backshell Material, Plating | Fastening Type | Shielding | Features | Primary Material | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 13282-18PG-321 | -40 °C | 115 °C | Male Pins, Plug | Gold | 600 V | Weathertight | Brass | 18 | Keyed | Black | Free Hanging (In-Line) | Nylon, Polyamide (PA) | Bayonet Lock | Unshielded | Backshell, Cable Clamp | Plastic | 0.21 in | 5.33 mm | 6.35 mm | 0.25 in | ||||
Conxall/Switchcraft 13282-18PG-326 | -40 °C | 115 °C | Male Pins, Plug | Gold | 600 V | Weathertight | Brass | 18 | Keyed | Black | Free Hanging (In-Line) | Nylon, Polyamide (PA) | Bayonet Lock | Unshielded | Backshell, Cable Clamp | Plastic | 0.26 in | 7.62 mm | 0.3 in | 6.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.47 | |
| 10 | $ 25.85 | |||
| 25 | $ 23.43 | |||
| 50 | $ 21.80 | |||
| 100 | $ 20.31 | |||
| 250 | $ 18.57 | |||
| 500 | $ 17.40 | |||
Description
General part information
13282-18P Series
18 Position Circular Connector Plug, Male Pins Solder Cup
