Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AP63203WU-EVM | AP63203 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 2 A | 2 A |
| Frequency - Switching | 1.1 MHz | 1.1 MHz |
| Function | - | Step-Down |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | 27.03 °C/W |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | TSOT-23-6, SOT-23-6 Thin |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | TSOT-23-6 |
| Synchronous Rectifier | - | True |
| Topology | - | Buck |
| Utilized IC / Part | AP63203 | AP63203 |
| Voltage - Input (Max) | - | 32 V |
| Voltage - Input (Min) | - | 3.8 V |
| Voltage - Input [Max] | 32 VDC | 32 VDC |
| Voltage - Input [Min] | 3.8 V | 3.8 V |
| Voltage - Output | 3.3 V | 3.3 V |
| Voltage - Output (Min/Fixed) | - | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.39 | |
AP63203 Series

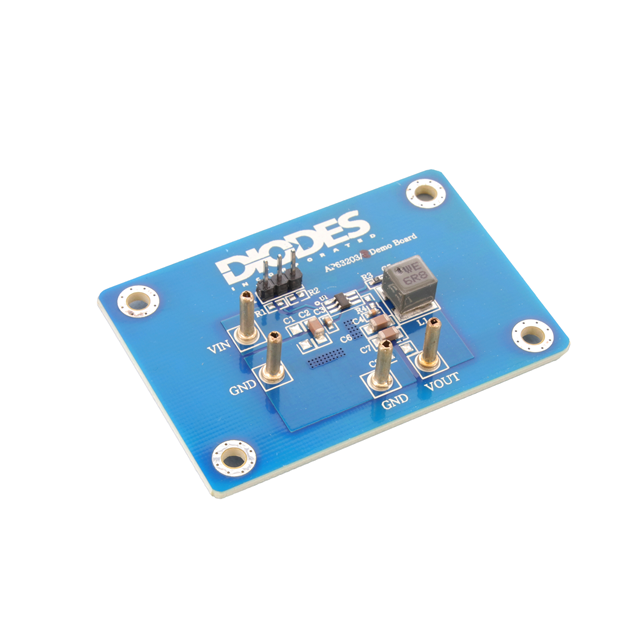

EVAL BOARD FOR AP63203
| Part | Frequency - Switching | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Supplied Contents | Current - Output | Main Purpose | Board Type | Voltage - Input (Min) [Min] | Topology | Package / Case | Voltage - Output (Min/Fixed) | Operating Temperature [Max] | Operating Temperature [Min] | Synchronous Rectifier | Supplier Device Package | Voltage - Input (Max) [Max] | Output Configuration | Number of Outputs | Output Type | Mounting Type | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Incorporated AP63203WU-EVM | 1.1 MHz | AP63203 | Non-Isolated | 1 | 3.8 V | 32 VDC | 3.3 V | Board(s) | 2 A | DC/DC, Step Down | Fully Populated | ||||||||||||||
Diodes Incorporated AP63203WU-7 | 1.1 MHz | 2 A | 3.8 V | Buck | SOT-23-6 Thin, TSOT-23-6 | 3.3 V | 85 °C | -40 °C | TSOT-23-6 | 32 V | Positive | 1 | 27.03 °C/W | Surface Mount | Step-Down |
Description
General part information
AP63203 Series
AP63203 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
