DC0011/15-TG-A486G-0.3-2A
Activet-Global Technology

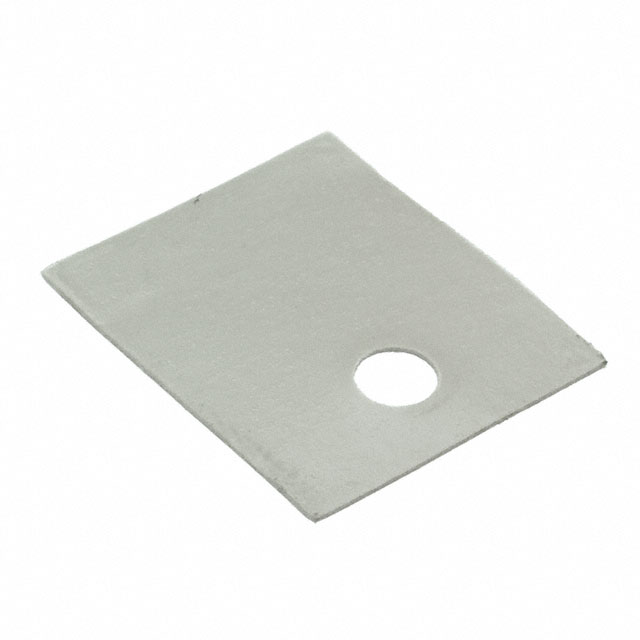

THERM PAD 21.84MMX18.79MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0011/15-TG-A486G-0.3-2A | DC0011/15 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | - | Viscose |
| Color | Gray | Yellow, White, Red, Gray |
| Material | - | Silicone |
| Outline [x] | 21.84 mm | 21.84 mm |
| Outline [y] | 18.79 mm | 18.79 mm |
| Shape | Rectangular | Rectangular |
| Shelf Life | 12 Months | 12 - 24 Months |
| Shelf Life Start | Date of Purchase | Date of Purchase |
| Thermal Conductivity | 6 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.005 in |
| Thickness | - | 0.127 mm |
| Thickness | - | 0.1 mm |
| Thickness | - | 0.0039 in |
| Thickness [custom] | 0.305 mm | 0.254 - 0.305 mm |
| Thickness [custom] | 0.012 " | 0.01 - 0.012 in |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | TO-220 | TO-220 |
DC0011/15 Series
THERM PAD 21.84MMX18.79MM W/ADH
| Part | Thermal Conductivity | Color | Adhesive | Shelf Life | Type | Shape | Thickness [custom] | Thickness [custom] | Usage | Outline [x] | Outline [y] | Thickness [x] | Thickness [x] | Material | Backing, Carrier | Thickness | Thickness | Shelf Life Start |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0011/15-TG-A373F-0.25-2A | 1.4 W/m-K | Yellow | Adhesive - Both Sides | 12 Months | Die-Cut Pad, Sheet | Rectangular | 0.254 mm | 0.01 in | TO-220 | 21.84 mm | 18.79 mm | |||||||
t-Global Technology DC0011/15-TI900-0.12-0 | 1.8 W/m-K | White | 24 Months | Die-Cut Pad, Sheet | Rectangular | TO-220 | 21.84 mm | 18.79 mm | 0.005 in | 0.127 mm | Silicone | Viscose | ||||||
t-Global Technology DC0011/15-TG-A482K-0.1-0 | 2.3 W/m-K | Red | 24 Months | Die-Cut Pad, Sheet | Rectangular | TO-220 | 21.84 mm | 18.79 mm | Silicone | 0.1 mm | 0.0039 in | Date of Purchase | ||||||
t-Global Technology DC0011/15-TI900-0.12-2A | 1.8 W/m-K | White | Adhesive - Both Sides | 24 Months | Die-Cut Pad, Sheet | Rectangular | TO-220 | 21.84 mm | 18.79 mm | 0.005 in | 0.127 mm | Silicone | Viscose | |||||
t-Global Technology DC0011/15-TG-A486G-0.3-2A | 6 W/m-K | Gray | Adhesive - Both Sides | 12 Months | Die-Cut Pad, Sheet | Rectangular | 0.305 mm | 0.012 " | TO-220 | 21.84 mm | 18.79 mm | Date of Purchase |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.59 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.35 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.20 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 1.11 | |||
| 5000 | $ 1.02 | |||
Description
General part information
DC0011/15 Series
Thermal Pad Gray 21.84mm x 18.79mm Rectangular Adhesive - Both Sides
