830

Active

SWITCHCRAFT/CONXALL

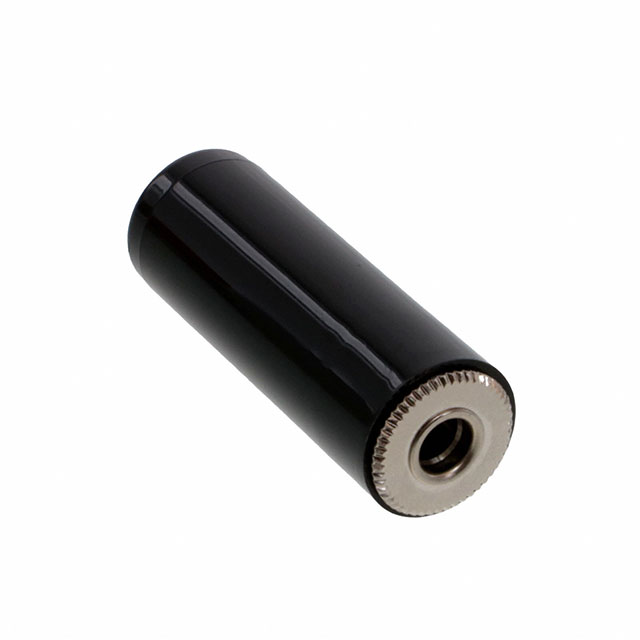

PHONE AUDIO CONNECTOR, JACK, CABLE MOUNT, NICKEL PLATED CONTACTS, COPPER ALLOY BODY

Find alt

Alpha

830

Active

SWITCHCRAFT/CONXALL

PHONE AUDIO CONNECTOR, JACK, CABLE MOUNT, NICKEL PLATED CONTACTS, COPPER ALLOY BODY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

- Series

Advanced Energy Industries C-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, -250V HVout, 20W, Thru-hole Mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Eared mounting flange

Technical Specifications

Parameters and characteristics for this part

Specification	830

Actual Diameter	0.25 in
Body Color	Black
Body Material	Copper Alloy
Cable Opening	0.28 in
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating	Nickel
Gender	Female
Housing Material	Nylon, Polyamide, PA
Industry Recognized Mating Diameter (Headphone)	6.35 mm
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Free Hanging (In-Line)
Number of Conductors	3 Conductors
Number of Contacts	3 Contacts
Shielding	Unshielded
Signal Lines	3 Conductor, TRS, Stereo
Termination	Screw

- Series

...

Part	Contact Material - Plating	Body Color	Body Material	Housing Material	Cable Opening	Contact Material	Signal Lines	Number of Contacts	Number of Conductors	Industry Recognized Mating Diameter (Connector)	Industry Recognized Mating Diameter	Gender	Mounting Type	Connector Type	Termination	Shielding	Internal Switch(s)	Actual Diameter	Primary Material	Shell Material	Shell Finish	Contact Finish - Mating	Features	Current Rating	Fastening Type	Number of Positions	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Orientation	Voltage Rating	Shell Size - Insert	Plating	Backshell Material	Material Flammability Rating	Color	Mounting Feature	Includes Total Count	Includes	Mating Length/Depth	Industry Recognized Mating Diameter (Headphone)	Actuator Material	Illumination	Actuator Length	Bushing Thread	Termination Style	Actuator Type	Accessory Type	Material	For Use With/Related Products	Backshell Material, Plating	Orientation Angle
SWITCHCRAFT/CONXALL 125	Tin	Silver	Copper Alloy	Copper Alloy	0.203 in	Steel	Mono	2 Contacts	2 Conductors	Tini Plug	3.55 mm	Female	Free Hanging (In-Line)	Phone Jack	Solder Eyelet(s)	Shielded	Does Not Contain Switch	0.144 in
SWITCHCRAFT/CONXALL TA8MSH					0.29 in	Copper Alloy							Free Hanging (In-Line)	Male Pins Receptacle	Solder Cup	Shielded			Metal	Copper Alloy	Nickel	Silver	Backshell Cable Clamp Ground	1.5 A	Latch Lock	8	Thermoplastic	-55 °C	85 °C	Audio Medical	Keyed	125 V	Mini XLR	Nickel	Copper Alloy	UL94 V-0	Silver
SWITCHCRAFT/CONXALL B4M						Brass							Panel Mount	Male Pins Receptacle	Solder Cup				Metal	Zinc	Nickel	Silver	Ground	10 A	Latch Lock	4	Polyester			Audio Instrumentation	Keyed	125 V	XLR				Silver	Bulkhead Rear Side Nut
SWITCHCRAFT/CONXALL 250	Nickel	Black Silver	Copper Alloy	Plastic	0.297 in	Brass	Mono	2 Contacts	2 Conductors			Male	Free Hanging (In-Line)	Phone Plug	Solder	Unshielded	Does Not Contain Switch	0.25 in																					2 pcs	Connector Handle	1.2 in	6.35 mm
SWITCHCRAFT/CONXALL 12015X													Panel Mount Right Angle																														Thermoplastic	Non-Illuminated	22.22 mm	15/32-32	Solder Lug	Standard Round
SWITCHCRAFT/CONXALL EN3CAP																							Weathertight														Black												Cap (Cover) Sealing	Thermoplastic Rubber	EN3® Series Plug
SWITCHCRAFT/CONXALL 820	Nickel	Black	Copper Alloy	Nylon PA Polyamide	0.26 in	Brass	Mono	2 Contacts	2 Conductors			Female	Free Hanging (In-Line)	Phone Jack	Screw	Unshielded	Does Not Contain Switch	0.252 in																					2 pcs	Connector Handle		6.35 mm
SWITCHCRAFT/CONXALL 05GM3M													Free Hanging (In-Line)	Male Pins Plug	Solder	Shielded			Metal	Zinc Die Cast	Nickel	Tin	Backshell Cable Clamp Strain Relief		Push-Pull	3	Plastic						DIN (180 Degree)				Gray Silver															Plastic	2 °
SWITCHCRAFT/CONXALL EHT4M						Copper Alloy							Panel Mount	Male Pins Receptacle	Solder Cup				Metal	Copper Alloy	Nickel	Silver			Latch Lock	4	Thermoplastic			Audio Instrumentation	Keyed		Mini XLR				Silver	Flange
SWITCHCRAFT/CONXALL TQG5F						Copper Alloy								Female Sockets Insert	Solder Cup							Silver	Insert Only Requires Shell	4 A		5	Thermoplastic	-55 °C	85 °C			125 V	Mini XLR
