880584-1
ActiveTE Connectivity AMP Connectors

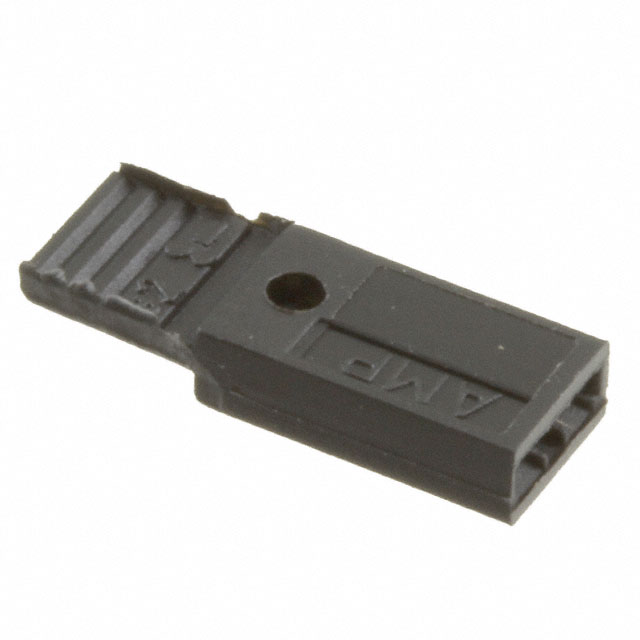

CONN POST SHUNTS 2POS 15GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
880584-1
ActiveTE Connectivity AMP Connectors
CONN POST SHUNTS 2POS 15GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 880584-1 | 880584 Series |
|---|---|---|
| Color | Black | Black, Natural |
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 15 µin | 15 - 30 Áin |
| Contact Finish Thickness | 0.38 µm | 0.38 - 0.76 Ám |
| Current Rating (Amps) | 3 A | 3 A |
| Gender | Female Sockets | Female Sockets |
| Height [z] | 0.551 in | 0.551 in |
| Height [z] | 14 mm | 14 mm |
| Housing Material | Thermoplastic | Thermoplastic, Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Type | Closed Top, Grip | Closed Top, Grip |
880584 Series
SHUNT CLOSED TOP 2POS .100 GOLD
| Part | Material Flammability Rating | Gender | Height [z] | Height [z] | Current Rating (Amps) | Contact Finish | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Housing Material | Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 880584-2 | UL94 V-0 | Female Sockets | 0.551 in | 14 mm | 3 A | Gold | 1 x 2 | 2 | Thermoplastic | Closed Top, Grip | 0.76 Ám | 30 Áin | 2.54 mm | 0.1 in | Black |
TE Connectivity AMP Connectors 880584-4 | UL94 V-0 | Female Sockets | 0.551 in | 14 mm | 3 A | Tin | 1 x 2 | 2 | Thermoplastic | Closed Top, Grip | 2.54 mm | 0.1 in | Black | ||
TE Connectivity AMP Connectors 1-880584-1 | UL94 V-0 | Female Sockets | 0.551 in | 14 mm | 3 A | Gold | 1 x 2 | 2 | Thermoplastic, Glass Filled | Closed Top | 0.38 µm | 15 µin | 2.54 mm | 0.1 in | Black |
TE Connectivity AMP Connectors 880584-5 | UL94 V-0 | Female Sockets | 0.551 in | 14 mm | 3 A | Gold | 1 x 2 | 2 | Thermoplastic, Glass Filled | Closed Top, Grip | 0.38 µm | 15 µin | 2.54 mm | 0.1 in | Natural |
TE Connectivity AMP Connectors 880584-1 | UL94 V-0 | Female Sockets | 0.551 in | 14 mm | 3 A | Gold | 1 x 2 | 2 | Thermoplastic | Closed Top, Grip | 0.38 µm | 15 µin | 2.54 mm | 0.1 in | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.48 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.29 | |||
| 2500 | $ 0.27 | |||
Description
General part information
880584 Series
2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.100" (2.54mm) Gold
