General part information

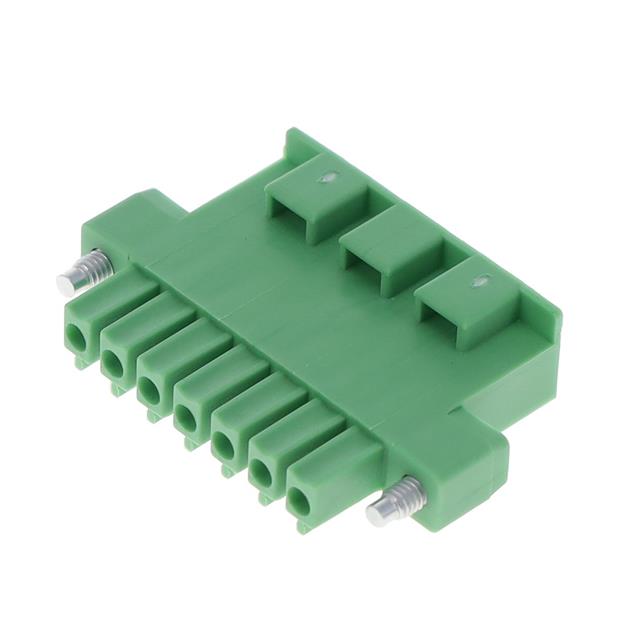

Pluggable Terminal Blocks 7 Pos 3.81mm pitch Plug 24-18 AWG Crimp
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1852419 |
|---|---|
| Color | Green |
| Current - IEC | 8 A |
| Current - UL | 5 A |
| Features | Mating Flange |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 0.343 in |
| Insulation Height | 8.71 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 7 |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Positions Per Level | 7 |
| Type | Plug Housing for Female Sockets |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - mm˛ [Max] | 1 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.2 mm˛ |
Pluggable Terminal Blocks 7 Pos 3.81mm pitch Plug 24-18 AWG Crimp
| Part | Features | Color | Voltage - UL | Mounting Type | Number of Levels | Type | Insulation Height | Insulation Height | Voltage - IEC | Housing Material | Current - IEC | Material Flammability Rating | Pitch [x] | Pitch [x] | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Current - UL | Positions Per Level | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1852419 | Mating Flange | Green | 300 V | Free Hanging (In-Line) | 1 | Plug Housing for Female Sockets | 0.343 in | 8.71 mm | 320 V | Polyamide (PA), Nylon | 8 A | UL94 V-0 | 0.15 in | 3.81 mm | 1 mm˛ | 0.2 mm˛ | 5 A | 7 | 7 |
