DEM23-B56IG1EWAQH
ObsoleteInnodisk USA Corporation
256GB M.2 (P30) 3TE7 EXTENDED TE
DEM23-B56IG1EWAQH
ObsoleteInnodisk USA Corporation
256GB M.2 (P30) 3TE7 EXTENDED TE
Description
General part information
DEM23-B56IG1EWAQH

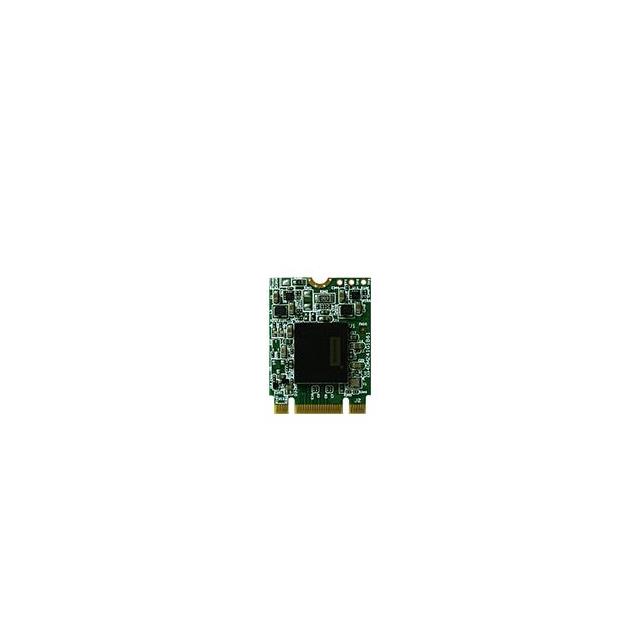

Solid State Drive (SSD) FLASH - NAND (TLC) 256GB NVMe M.2 Module 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | DEM23-B56IG1EWAQH |
|---|---|
| Current - Max | 470 mA |
| Form Factor | M.2 Module |
| Memory Size | 256 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Height | 2.66 mm |
| Size / Dimension Length | 30 mm |
| Size / Dimension Width | 22 mm |
| Speed - Read | 1.7 GB/s |
| Speed - Write | 1.35 GB/s |
| Type | NVMe |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
