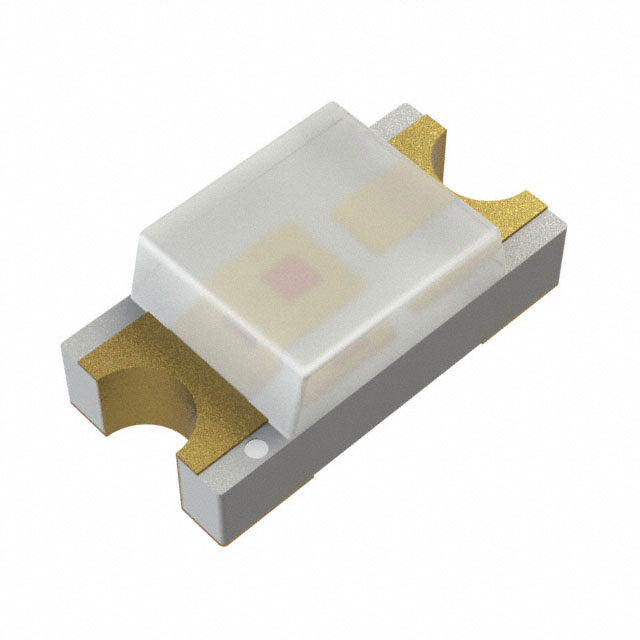

SML-LX0603USBW-TR

Active

Lumex Opto/Components Inc.

LED BLUE DIFFUSED 0603 SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LX0603USBW-TR	SML-LX0603 Series

	-	-
Color	Blue	Red, Blue, Green, Yellow, White
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	0.6 - 0.73 mm
Height (Max) [Max] [z]	0.85 mm	0.8 - 0.85 mm
Lens Color	White	White, Yellow
Lens Size [x]	1 mm	1 mm
Lens Size [y]	0.8 mm	0.8 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	112.5 mcd	14 - 160 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [y]	0.8 mm	0.8 mm
Viewing Angle	140 °	120 - 160 °
Voltage - Forward (Vf) (Typ)	3.3 V	1.7 - 3.5 V
Wavelength - Peak	-	565 - 660 nm

SML-LX0603 Series

LED RED DIFFUSED SMD

Part	Configuration	Lens Transparency	Wavelength - Peak	Mounting Type	Color	Viewing Angle	Height (Max) [Max]	Millicandela Rating	Current - Test	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Package / Case	Height (Max) [Max] [z]
Lumex Opto/Components Inc. SML-LX0603SRW-TR	Standard	Diffused	660 nm	Surface Mount	Red	120 °	0.6 mm	15 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	1.7 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603SIW-TR	Standard	Diffused	632 nm	Surface Mount	Red	128 °	0.6 mm	71.5 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	2 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603IW-TR	Standard	Diffused	635 nm	Surface Mount	Red	160 °	0.6 mm	14 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	2 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603USBW-TR	Standard	Diffused		Surface Mount	Blue	140 °		112.5 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	3.3 V	0603 (1608 Metric)	0.85 mm
Lumex Opto/Components Inc. SML-LX0603SUGW-TR	Standard	Diffused		Surface Mount	Green	140 °	0.6 mm	71.5 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	2 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603SGW-TR		Diffused	565 nm	Surface Mount	Green	160 °	0.73 mm	20 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	2.2 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603GW-TR	Standard	Diffused	565 nm	Surface Mount	Green	160 °	0.6 mm	18 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	2.2 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603SOW-TR	Standard	Diffused	610 nm	Surface Mount		140 °	0.6 mm	60 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	2 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603YW-TR	Standard	Diffused	585 nm	Surface Mount	Yellow	160 °	0.6 mm	14 mcd	20 mA	Rectangle with Flat Top	1.6 mm	0.8 mm	White	1 mm	0.8 mm	2.1 V	0603 (1608 Metric)
Lumex Opto/Components Inc. SML-LX0603UPGW-TR
