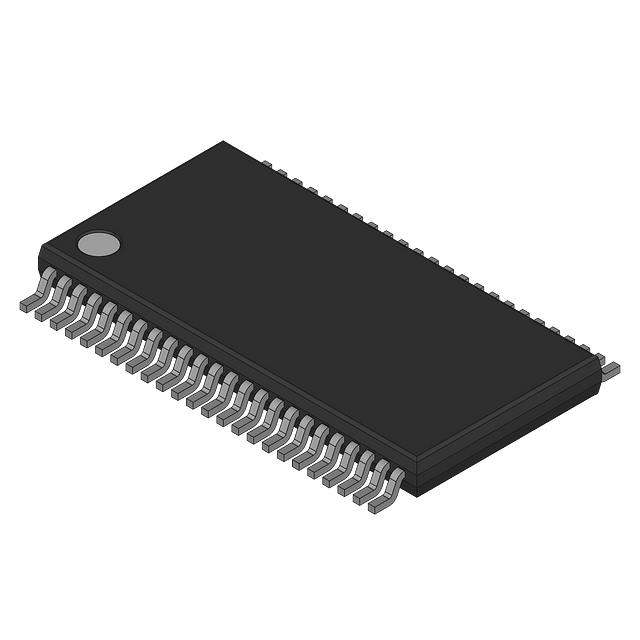

74FCT163373CPAG
ActiveIDT, Integrated Device Technology Inc
74FCT163373 - 3.3V CMOS 16-BIT T
Deep-Dive with AI
Search across all available documentation for this part.
74FCT163373CPAG
ActiveIDT, Integrated Device Technology Inc
74FCT163373 - 3.3V CMOS 16-BIT T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 74FCT163373CPAG | 74FCT163373 Series |
|---|---|---|
| - | - | |
| Circuit | 8:8 | 8:8 |
| Current - Output High, Low [custom] | 8 mA | 8 mA |
| Current - Output High, Low [custom] | 24 mA | 24 mA |
| Independent Circuits | 2 | 2 |
| Logic Type | D-Type Transparent Latch | D-Type Transparent Latch |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Tri-State | Tri-State |
| Package / Case | 48-TFSOP | 48-TFSOP, 48-BSSOP (0.295", 7.50mm Width) |
| Package / Case | 0.24 in | 0.24 in |
| Package / Case [y] | 6.1 mm | 6.1 mm |
| Supplier Device Package | 48-TSSOP | 48-TSSOP, 48-SSOP |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.3 V | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 245 | $ 1.23 | |
74FCT163373 Series
3.3V CMOS 16 BIT TRANSPARENT LA
| Part | Independent Circuits | Mounting Type | Supplier Device Package | Circuit | Output Type | Package / Case [y] | Package / Case | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Logic Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 74FCT163373X4CPA | |||||||||||||||
IDT, Integrated Device Technology Inc 74FCT163373CPAG | 2 | Surface Mount | 48-TSSOP | 8:8 | Tri-State | 6.1 mm | 48-TFSOP | 0.24 in | 3.6 V | 2.3 V | 8 mA | 24 mA | -40 °C | 85 °C | D-Type Transparent Latch |
IDT, Integrated Device Technology Inc 74FCT163373X4CPV | |||||||||||||||
IDT, Integrated Device Technology Inc 74FCT163373APVG | 2 | Surface Mount | 48-SSOP | 8:8 | Tri-State | 48-BSSOP (0.295", 7.50mm Width) | 3.6 V | 2.3 V | 8 mA | 24 mA | -40 °C | 85 °C | D-Type Transparent Latch | ||
IDT, Integrated Device Technology Inc 74FCT163373APAG | 2 | Surface Mount | 48-TSSOP | 8:8 | Tri-State | 6.1 mm | 48-TFSOP | 0.24 in | 3.6 V | 2.3 V | 8 mA | 24 mA | -40 °C | 85 °C | D-Type Transparent Latch |
IDT, Integrated Device Technology Inc 74FCT163373APAG8 | 2 | Surface Mount | 48-TSSOP | 8:8 | Tri-State | 6.1 mm | 48-TFSOP | 0.24 in | 3.6 V | 2.3 V | 8 mA | 24 mA | -40 °C | 85 °C | D-Type Transparent Latch |
IDT, Integrated Device Technology Inc 74FCT163373X4APA |
Description
General part information
74FCT163373 Series
D-Type Transparent Latch 2 Channel 8:8 IC Tri-State 48-TSSOP
