MXH334K305E14

Active

Cornell Dubilier Knowles

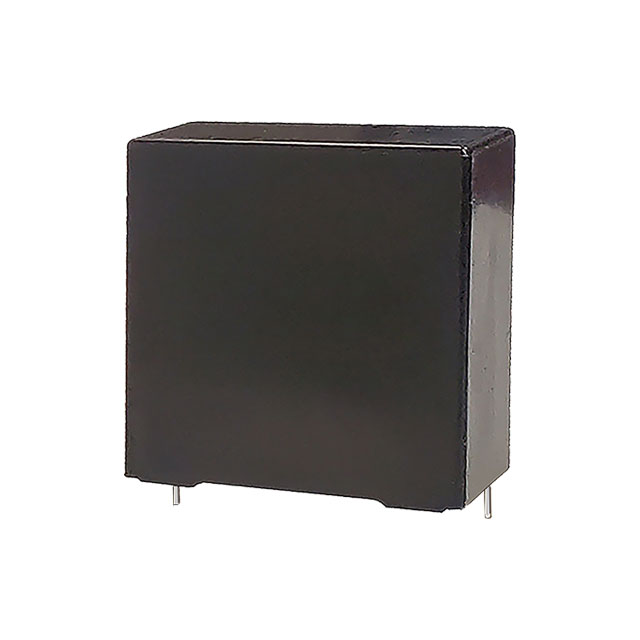

CAP FILM 0.33UF 10% 305VAC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MXH334K305E14

Active

Cornell Dubilier Knowles

CAP FILM 0.33UF 10% 305VAC RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.71
		10	$ 0.43
		50	$ 0.33
		100	$ 0.29
		500	$ 0.24
		1000	$ 0.23

Description

General part information

MXH Series

0.33 µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MXH334K305E14	MXH Series

Applications	EMI, RFI Suppression, Automotive	EMI, RFI Suppression, Automotive
Capacitance	0.33 µF	0.22 - 100000 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max)	-	16.5 - 46 mm
Height - Seated (Max)	-	0.669 - 16.51 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max]	15 mm	11.5 - 24.8 mm
Height - Seated (Max) [Max]	0.591 "	0.453 - 0.976 in
Lead Spacing	15 mm	15 - 37.5 mm
Lead Spacing	0.591 in	0.591 - 1.476 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial
Ratings	X2, AEC-Q200	X2, AEC-Q200
Size / Dimension	-	10 mm
Size / Dimension [x]	0.709 in	0.709 - 1.654 in
Size / Dimension [x]	18 mm	0.709 - 42 mm
Size / Dimension [y]	8.5 mm	0.276 - 30 mm
Size / Dimension [y]	0.335 in	0.197 - 1.181 in
Termination	PC Pins	PC Pins
Tolerance	10 %	10 %
Voltage Rating - AC	305 V	305 V

MXH Series

CAP FILM 1UF 10% 305VAC RADIAL

Part	Features	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Dielectric Material	Voltage Rating - AC	Package / Case	Applications	Mounting Type	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Cornell Dubilier Knowles MXH105K305G20	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	22.5 mm	0.886 in	19.5 mm	0.768 in	AEC-Q200, X2	26 mm	0.394 in	10 mm	1.024 in	1 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole
Cornell Dubilier Knowles MXH225K305H23	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	27.5 mm	1.083 in	24.8 mm	0.976 in	AEC-Q200, X2	32 mm	0.551 in	14 mm	1.26 in	2.2 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole
Cornell Dubilier Knowles MXH104K305E10	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	15 mm	0.591 in	11.5 mm	0.453 "	AEC-Q200, X2	18 mm	0.197 "	5 mm	0.709 in	100000 pF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole
Cornell Dubilier Knowles MXH474K305E20	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	15 mm	0.591 in			AEC-Q200, X2	18 mm	0.394 in		0.709 in	0.47 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole	10 mm	16.5 mm	16.51 mm
Cornell Dubilier Knowles MXH684K305H11	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	27.5 mm	1.083 in			AEC-Q200, X2	32 mm	0.354 in	9 mm	1.26 in	680 nF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole
Cornell Dubilier Knowles MXH106K305N32	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	37.5 mm	1.476 in			AEC-Q200, X2	42 mm	0.945 in	24 mm	1.654 in	10 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole		45 mm	1.772 in
Cornell Dubilier Knowles MXH105K305H20	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	27.5 mm	1.083 in			AEC-Q200, X2	32 mm	0.433 in	11 mm	1.26 in	1 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole		20.8 mm	0.819 in
Cornell Dubilier Knowles MXH224K305G11	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	22.5 mm	0.886 in			AEC-Q200, X2	1.024 in, 26 mm		0.276 in, 7 mm		0.22 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole		17 mm	0.669 in
Cornell Dubilier Knowles MXH224K305E14	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	15 mm	0.591 in	15 mm	0.591 "	AEC-Q200, X2	18 mm	0.335 in	8.5 mm	0.709 in	0.22 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole
Cornell Dubilier Knowles MXH334K305G11	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	22.5 mm	0.886 in			AEC-Q200, X2	1.024 in, 26 mm		0.276 in, 7 mm		0.33 µF	10 %	-40 °C	110 °C	PC Pins	Metallized, Polypropylene (PP)	305 V	Radial	Automotive, EMI, RFI Suppression	Through Hole		17 mm	0.669 in
