Specification	0872641450

Applications	General Purpose, Telecommunications, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.1 in
Contact Shape	Square
Contact Type	Female Socket
Current Rating	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.157 in
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	125 V

087264 Series

Part	Mounting Type	Pitch - Mating	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating	Voltage Rating	Number of Positions Loaded	Row Spacing - Mating	Number of Rows	Contact Finish - Post	Style	Fastening Type	Number of Positions	Contact Type	Contact Finish - Mating	Connector Type	Contact Length - Post	Termination	Insulation Height	Insulation Color	Contact Shape	Contact Finish Thickness - Post	Applications
Molex 0872643250	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin-Lead	Board Board or Cable	Push-Pull	32	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872642850	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin-Lead	Board Board or Cable	Push-Pull	28	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872644052	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin	Board Board or Cable	Push-Pull	40	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872643652	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin	Board Board or Cable	Push-Pull	36	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications

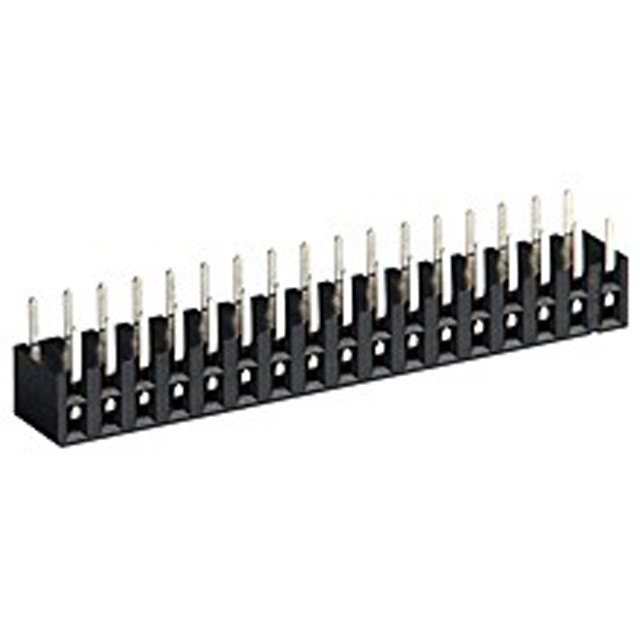

Molex 0872643053	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	30 µin	125 V	All	0.079 in	2	Tin	Board Board or Cable	Push-Pull	30	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872644050	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin-Lead	Board Board or Cable	Push-Pull	40	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872640858	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin	Board Board or Cable	Push-Pull	8	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872644453	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	30 µin	125 V	All	0.079 in	2	Tin	Board Board or Cable	Push-Pull	44	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872644850	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin-Lead	Board Board or Cable	Push-Pull	48	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
Molex 0872643650	Right Angle Through Hole	0.079 in	1 A	-55 °C	105 °C	15 µin	125 V	All	0.079 in	2	Tin-Lead	Board Board or Cable	Push-Pull	36	Female Socket	Gold	Receptacle	0.1 in	Solder	0.157 in	Black	Square	100 Ąin	Automotive General Purpose Telecommunications
