WBR1500-50A
ObsoleteCornell Dubilier Knowles

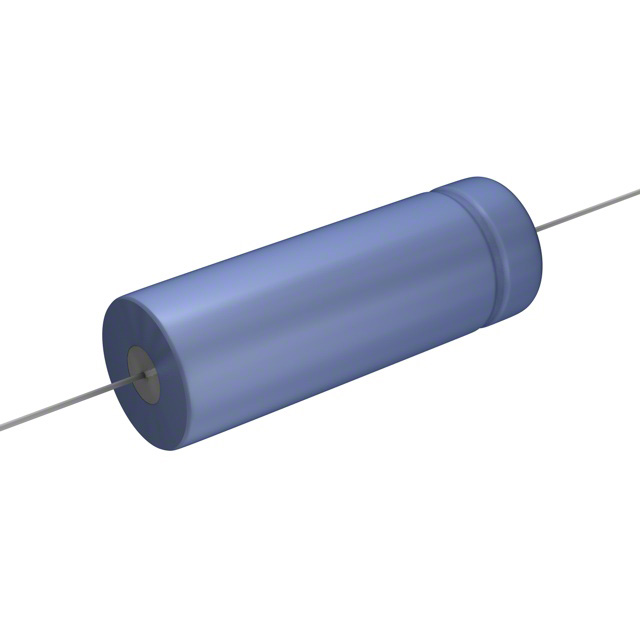

CAP ALUM 1500UF 50V AXIAL TH
WBR1500-50A
ObsoleteCornell Dubilier Knowles
CAP ALUM 1500UF 50V AXIAL TH
Description
General part information
WBR1500-50A
1500 µF 50 V Aluminum Electrolytic Capacitors Axial, Can 250mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | WBR1500-50A |
|---|---|
| Applications | General Purpose |
| Capacitance | 1500 µF |
| ESR (Equivalent Series Resistance) | 250 mOhm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 851 mA, 740 mA |
| Size / Dimension Diameter | 0.65 in |
| Size / Dimension Length | 1.83 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 150 % |
| Voltage - Rated | 50 V |
