3240782
ActivePhoenix Contact

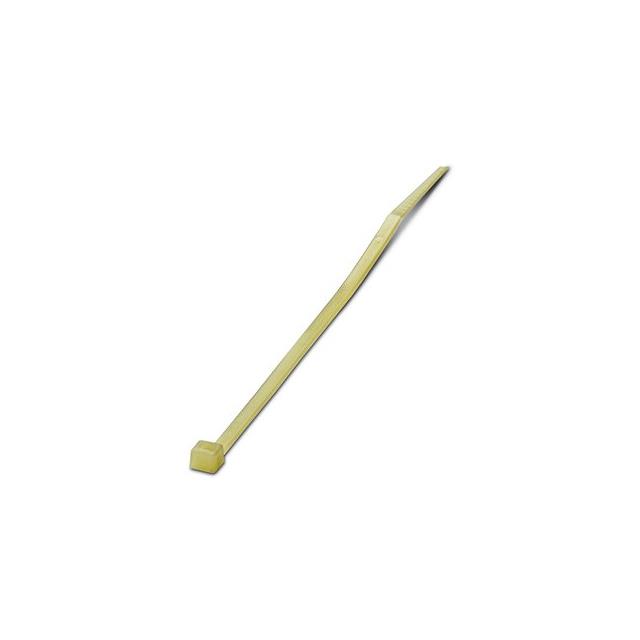

CABLE TIES, STANDARD LOCKING POLYAMIDE 6/6 TRANSPARENT 35MM 130N
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240782 | WT-HT HF Series |
|---|---|---|
| Bundle Diameter | 1.38 in | 1.38 - 1.97 in |
| Bundle Diameter | 35 mm | 35 - 50 mm |
| Bundle Diameter | - | 21 - 100 mm |
| Bundle Diameter | - | 0.83 - 3.94 in |
| Color | Transparent | Transparent, Black |
| Features | Halogen Free | Halogen Free |
| Length - Actual | - | 0.322 - 1.198 ft |
| Length - Actual | - | 290 - 365 mm |
| Length - Actual | - | 11.42 " |
| Length - Actual | - | 98 - 200 mm |
| Length - Actual | - | 0.656 ft |
| Length - Actual | - | 3.86 - 7.87 " |
| Length - Approximate | 5.5 in | 3.75 - 14.25 in |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tensile Strength | 29.2 lbs | 18 - 121.4 lbs |
| Tensile Strength | 13.25 kg | 8.16 - 55.07 kg |
| Width | - | 7.8 mm |
| Width | - | 0.307 " |
| Width | - | 4.8 mm |
| Width | - | 0.189 in |
| Width [x] | 0.142 in | 0.098 - 0.142 in |
| Width [x] | 3.61 mm | 2.5 - 3.61 mm |
| Wire/Cable Tie Type | Standard, Locking | Standard, Locking |
WT-HT HF Series
CABLE TIES, STANDARD LOCKING POLYAMIDE 6/6 TRANSPARENT 35MM 130N
| Part | Tensile Strength | Tensile Strength | Material | Width [x] | Width [x] | Color | Mounting Type | Bundle Diameter | Bundle Diameter | Wire/Cable Tie Type | Length - Approximate | Features | Bundle Diameter [diameter] | Bundle Diameter [diameter] | Length - Actual [x] | Length - Actual [x] | Width | Width | Width [y] | Width [y] | Length - Actual [x] | Length - Actual | Length - Actual | Length - Actual |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240782 | 29.2 lbs | 13.25 kg | Polyamide (PA66), Nylon 6/6 | 0.142 in | 3.61 mm | Transparent | Free Hanging (In-Line) | 1.38 in | 35 mm | Locking, Standard | 5.5 in | Halogen Free | ||||||||||||
Phoenix Contact 3240792 | 121.4 lbs | 55.07 kg | Polyamide (PA66), Nylon 6/6 | Transparent | Free Hanging (In-Line) | Locking, Standard | 14.25 in | Halogen Free | 100 mm | 3.94 in | 1.198 ft | 365 mm | 7.8 mm | 0.307 " | ||||||||||
Phoenix Contact 3240788 | Polyamide (PA66), Nylon 6/6 | Transparent | Free Hanging (In-Line) | Locking, Standard | 11.5 in | 0.951 ft | 290 mm | 4.8 mm | 0.189 in | 11.42 " | ||||||||||||||
Phoenix Contact 3240793 | 121.4 lbs | 55.07 kg | Polyamide (PA66), Nylon 6/6 | Black | Free Hanging (In-Line) | Locking, Standard | 14.25 in | Halogen Free | 100 mm | 3.94 in | 1.198 ft | 365 mm | 7.8 mm | 0.307 " | ||||||||||
Phoenix Contact 3240786 | Polyamide (PA66), Nylon 6/6 | Transparent | Free Hanging (In-Line) | Locking, Standard | 7.75 in | 4.8 mm | 0.189 in | 200 mm | 0.656 ft | 7.87 " | ||||||||||||||
Phoenix Contact 3240785 | 29.2 lbs | 13.25 kg | Polyamide (PA66), Nylon 6/6 | 0.142 in | 3.61 mm | Black | Free Hanging (In-Line) | 1.97 in | 50 mm | Locking, Standard | 7.75 in | Halogen Free | 200 mm | 0.656 ft | 7.87 " | |||||||||
Phoenix Contact 3240781 | 18 lbs | 8.16 kg | Polyamide (PA66), Nylon 6/6 | 0.098 in | 2.5 mm | Black | Free Hanging (In-Line) | Locking, Standard | 3.75 in | Halogen Free | 21 mm | 0.83 in | 0.322 ' | 98 mm | 3.86 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 10 | $ 0.01 | |||
Description
General part information
WT-HT HF Series
Standard, Locking Transparent 1.38" (35.00mm) 0.142" (3.61mm) 29.2 lbs (13.25 kg )
