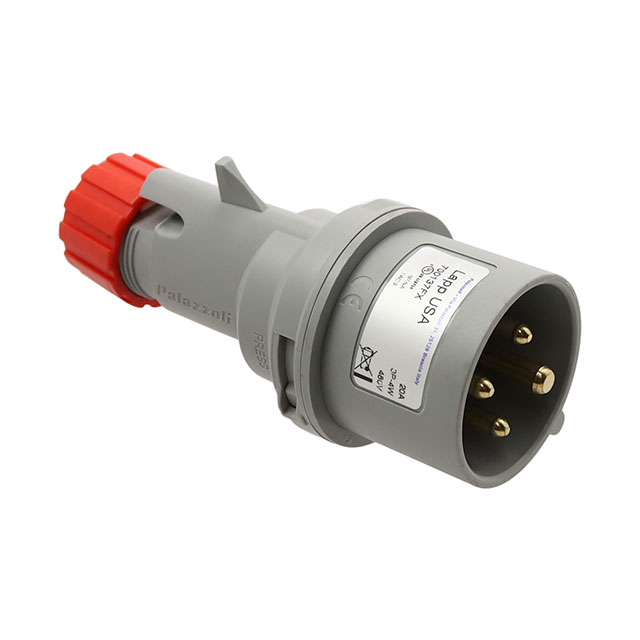

700137FX

Active

LAPP

CONN P+S 20A 480V 3+GND MALE

Search across all available documentation for this part.

Active

LAPP

CONN P+S 20A 480V 3+GND MALE

Technical Specifications

Parameters and characteristics for this part

Specification	700137FX

Approval Agency	cULus
Connector Type	Plug, Male Pins
Current Rating (Amps)	20 A
Features	Cable Clamp, Strain Relief
Ingress Protection	IP44
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	480 VAC
Voltage Rating	3 Phase

CONN P+S 20A 480V 3+GND MALE

Part	Ingress Protection	Features	Connector Type	Voltage Rating	Voltage Rating	Termination	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Mounting Type	Approval Agency
LAPP 700137FX	IP44	Cable Clamp, Strain Relief	Male Pins, Plug	480 VAC	3 Phase	Screw	4	20 A	UL94 V-0	Free Hanging (In-Line)	cULus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Plug, Male Pins Free Hanging (In-Line)
