284875-6

Active

TE Connectivity Raychem Cable Protection

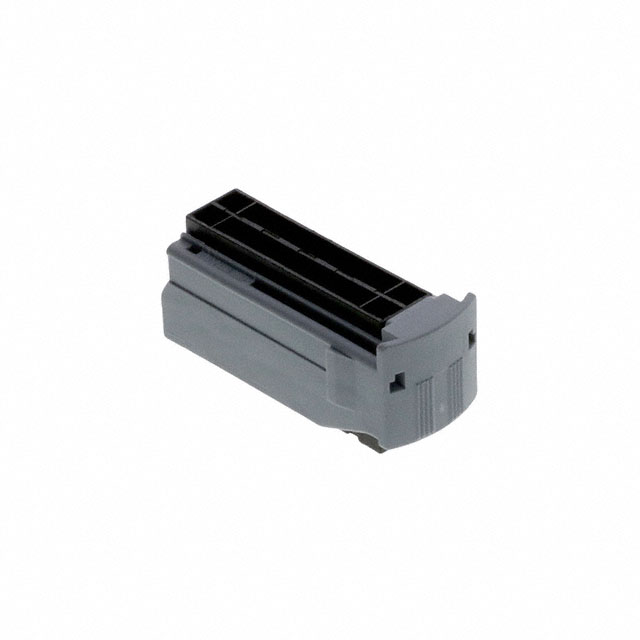

20 POS FEMALE CONN ASSY

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

20 POS FEMALE CONN ASSY

Technical Specifications

Parameters and characteristics for this part

Specification	284875-6

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	5.51 mm
Row Spacing [x]	0.217 in

Part	Type	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Note	Contact Type	Pitch [x]	Pitch [x]	Insulation Material	Number of Positions	Fastening Type	Color	Row Spacing [x]	Row Spacing	Connector Type	Number of Rows	Row Spacing	Features
TE Connectivity Raychem Cable Protection 1418408-1	Stamped	Tab	17 AWG	20 AWG	Crimp	Tin
TE Connectivity Raychem Cable Protection 1241374-3
TE Connectivity Raychem Cable Protection 1241374-1		Socket	17 AWG	20 AWG	Crimp	Tin
TE Connectivity Raychem Cable Protection 1241380-2		Socket	17.5 AWG	20 AWG	Crimp	Gold	31.5 µin	0.8 µm
TE Connectivity Raychem Cable Protection 1564324-1	Stamped	Socket	22 AWG	24 AWG	Crimp	Tin
TE Connectivity Raychem Cable Protection 284875-6					Crimp				-25 °C	105 ░C	Free Hanging (In-Line)	Contacts Not Included	Female Socket	4.2 mm	0.165 in	Polyamide (PA66) Nylon 6/6 Glass Filled	20	Latch Lock	Black	0.217 in	5.51 mm	Receptacle	2
TE Connectivity Raychem Cable Protection 1564324-3	Stamped	Tab	22 AWG	24 AWG	Crimp	Silver	118.1 µin	3 µm
TE Connectivity Raychem Cable Protection 1897725-2					Crimp						Free Hanging (In-Line)		Tab	4 mm	0.157 in	Polybutylene Terephthalate (PBT) Glass Filled	10	Locking Ramp	Black		4 mm	Plug	2	0.157 in	Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 2.44

General part information

20 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.2 mm [.16 in] Centerline, Black, Wire & Cable, Power, Hybrid
