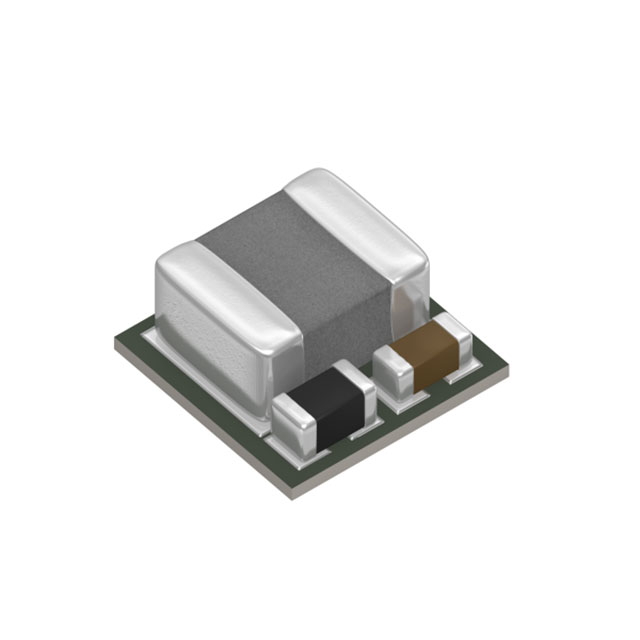

FS1406-0750-AL
ActiveTDK Corporation
DC DC CONVERTER 0.75V
FS1406-0750-AL
ActiveTDK Corporation
DC DC CONVERTER 0.75V
Description
General part information
FS1406-0750-AL
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.75V 6A 4.5V - 16V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | FS1406-0750-AL |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 6 A |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 17-SMD Module |
| Size / Dimension Height | 0.06 in |
| Size / Dimension Length | 0.13 in |
| Size / Dimension Width | 0.13 in |
| Type | Digital, Non-Isolated PoL Module |
| Voltage - Input (Max) | 16 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Output 1 | 0.75 V |
