FMCA1853-150CM
ActiveFairview Microwave
CBL ASSY 7/16 DINPLUG-7/16 DINJA
FMCA1853-150CM
ActiveFairview Microwave
CBL ASSY 7/16 DINPLUG-7/16 DINJA
Description
General part information
FMCA1853-150CM

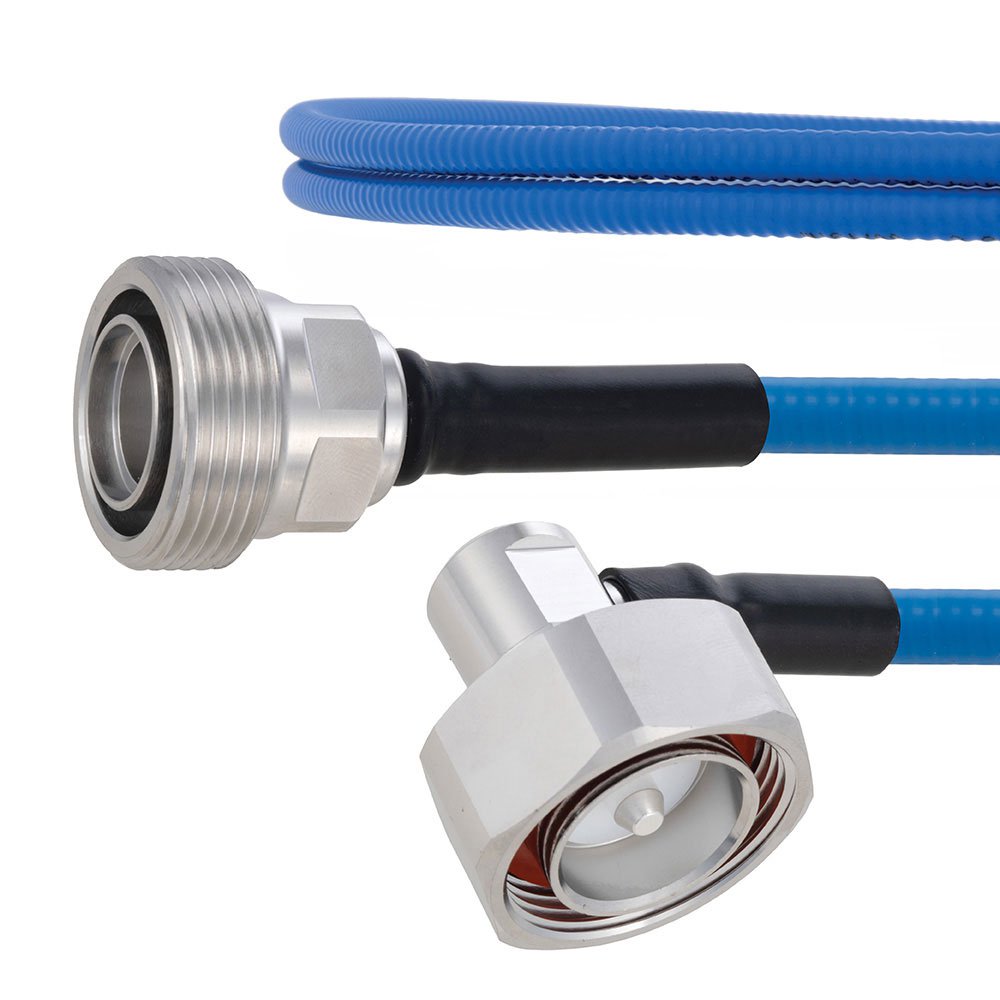

Cable Assembly Coaxial 7/16 DIN to 7/16 DIN SPP-250LLPL 59.1" (1.5m) 4.9'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1853-150CM |
|---|---|
| 1st Connector | 7/16 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, 7/16 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 59.1 in |
| Length (ft) | 4.9 ft |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to 7/16 DIN |
