2980490
ActivePhoenix Contact

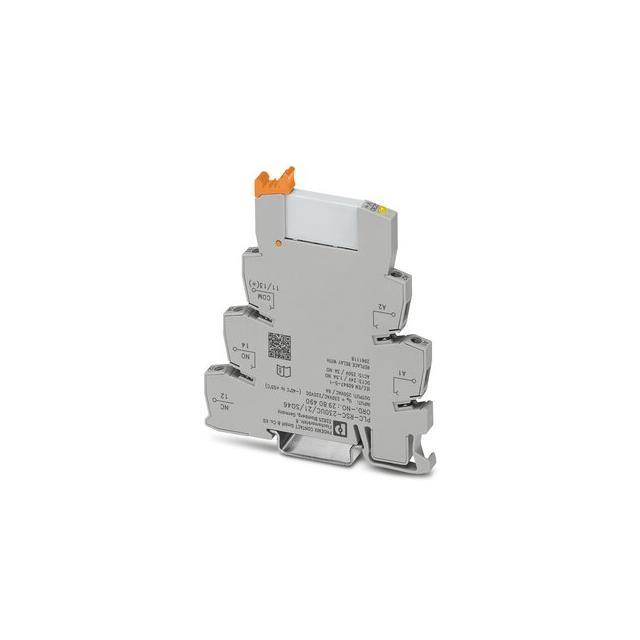

RELAY GEN PURPOSE SPDT 6A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2980490
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 6A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2980490 | 29804 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE |
| Coil Current | 10 mA | 10 mA |
| Coil Resistance | 26.6 kOhms | 2.4 - 26.6 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 230 VAC | 24 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO), Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 7 ms | 7 - 8 ms |
| Operating Temperature [Max] | 55 °C | 55 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 20 ms | 10 - 20 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29804 Series
RELAY GEN PURPOSE SPDT 6A 230V
| Part | Mounting Type | Features | Operate Time | Coil Resistance | Contact Rating (Current) | Coil Type | Switching Voltage | Coil Current | Release Time | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Relay Type | Contact Form | Contact Material | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2980490 | DIN Rail | Lighted Indicator, Socket Included | 7 ms | 26.6 kOhms | 6 A | Non Latching | 250 VAC, 250 VDC | 10 mA | 20 ms | Screw Terminal | -40 °C | 55 °C | CE, UKCA | General Purpose | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) | 230 VAC |
Phoenix Contact 2980461 | DIN Rail | Lighted Indicator, Socket Included | 8 ms | 2.4 kOhms | 6 A | Non Latching | 250 VAC, 250 VDC | 10 mA | 10 ms | Screw Terminal | -40 °C | 70 °C | CE, UKCA | General Purpose | DPDT (2 Form C) | Silver Nickel (AgNi) | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.06 | |
| 10 | $ 47.72 | |||
| 50 | $ 43.90 | |||
| 100 | $ 40.56 | |||
| 250 | $ 38.65 | |||
Description
General part information
29804 Series
General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
