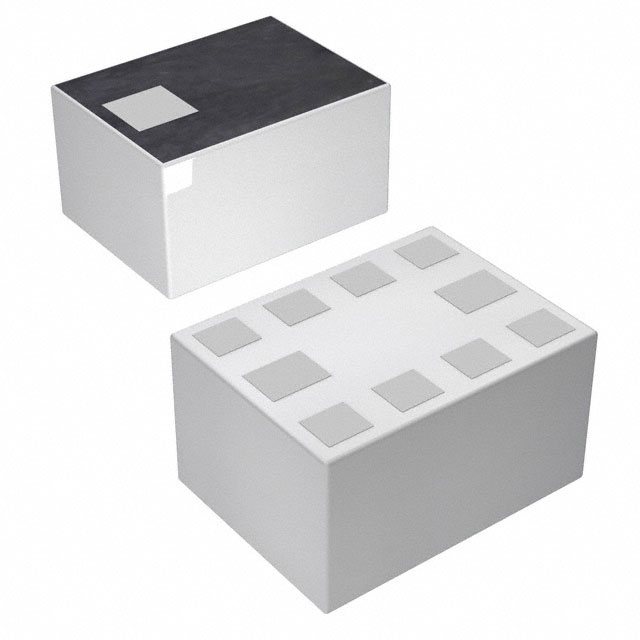

DEA211898BT-9033B1
ObsoleteTDK Corporation
RF FILTER 914.5MHZ/1.915GHZ 0805
DEA211898BT-9033B1
ObsoleteTDK Corporation
RF FILTER 914.5MHZ/1.915GHZ 0805
Description
General part information
DEA211898BT-9033B1
914.5MHz Center, 1.915GHz Center Frequency Balance RF Filter (Radio Frequency) 91MHz, 220MHz Bandwidth 1.5dB, 1.9dB 0805 (2012 Metric), 10 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | DEA211898BT-9033B1 |
|---|---|
| Bandwidth | 91 MHz, 220 MHz |
| Filter Type | Balance |
| Frequency (Center) | 1.915 GHz, 914.5 MHz |
| Height (Max) | 0.047 in |
| Insertion Loss (Value 1) | 1.5 dB |
| Insertion Loss (Value 2) | 1.9 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 10 PC Pad |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.059 in |
