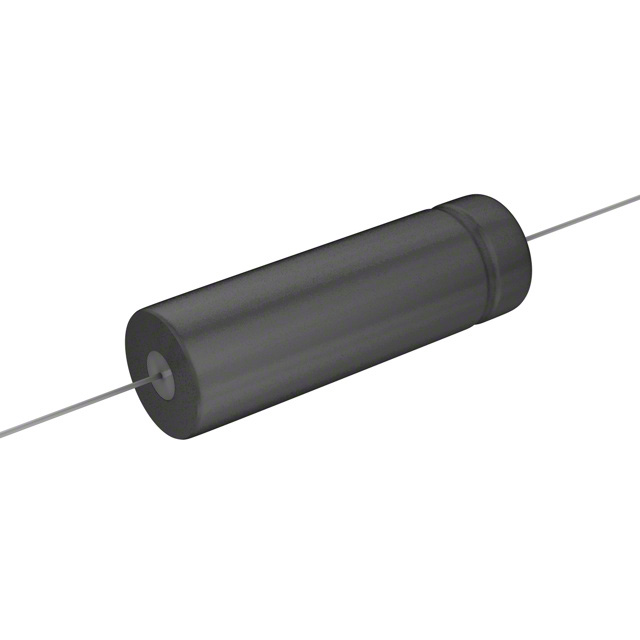

TC807
ObsoleteCornell Dubilier Knowles
CAP ALUM 100UF 450V AXIAL TH
TC807
ObsoleteCornell Dubilier Knowles
CAP ALUM 100UF 450V AXIAL TH
Description
General part information
TC807
100 µF 450 V Aluminum Electrolytic Capacitors Axial, Can 1.97Ohm 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TC807 |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 1.97 Ohm |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Size / Dimension Diameter | 1 in |
| Size / Dimension Length | 3.125 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 450 V |
