SSB-1202FR

Active

TE Connectivity Aerospace, Defense and Marine

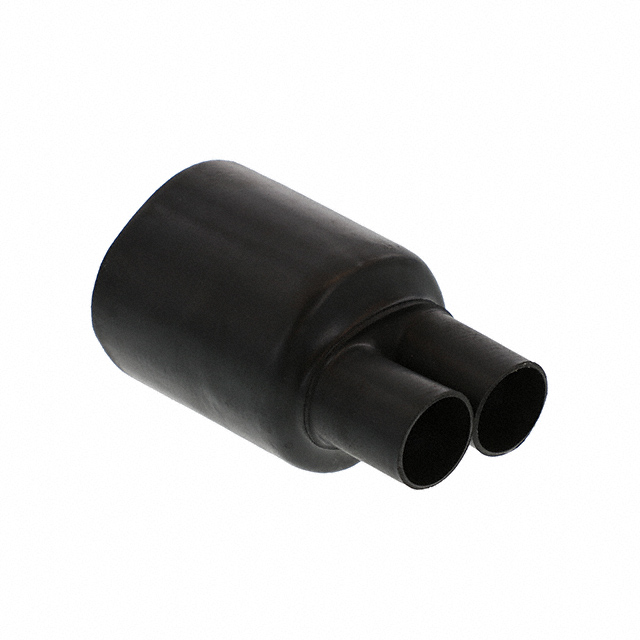

HEATSHRINK BOOT BREAKOUT 2:1 BLK

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK BOOT BREAKOUT 2:1 BLK

Technical Specifications

Parameters and characteristics for this part

Specification	SSB-1202FR

Color	Black
Features	Weather Resistant, Flame Retardant, Adhesive Coating, Abrasion Resistant, Corrosion Resistant
Large Diameter Recovered [diameter]	0.5 in
Large Diameter Recovered [diameter]	12.7 mm
Large Diameter Supplied	40.64 mm
Large Diameter Supplied [diameter]	1.6 in
Large Recovered Length [x]	65.28 mm
Large Recovered Length [x]	2.57 in
Material	Polyolefin (PO), Semi-Rigid
Small Diameter Recovered [diameter]	3.81 mm
Small Diameter Recovered [diameter]	0.15 "
Small Diameter Supplied	12.7 mm
Small Diameter Supplied [diameter]	0.5 in
Total Length Recovered	4.09 in
Total Length Recovered	103.89 mm
Total Length Supplied	3.14 in
Total Length Supplied	79.76 mm
Type	Boot, Transition - Breakout, 2:1

HEATSHRINK BOOT BREAKOUT 2:1 BLK

Part	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Color	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Type	Total Length Recovered	Total Length Recovered	Total Length Supplied	Total Length Supplied	Large Diameter Supplied [diameter]	Large Diameter Supplied	Features	Large Recovered Length [x]	Large Recovered Length [x]	Small Diameter Supplied [diameter]	Small Diameter Supplied	Material
TE Connectivity Aerospace, Defense and Marine SSB-1202FR	0.5 in	12.7 mm	Black	3.81 mm	0.15 "	Boot, Transition - Breakout, 2:1	4.09 in	103.89 mm	3.14 in	79.76 mm	1.6 in	40.64 mm	Abrasion Resistant, Adhesive Coating, Corrosion Resistant, Flame Retardant, Weather Resistant	65.28 mm	2.57 in	0.5 in	12.7 mm	Polyolefin (PO), Semi-Rigid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Boot, Transition - Breakout, 2:1 Black
