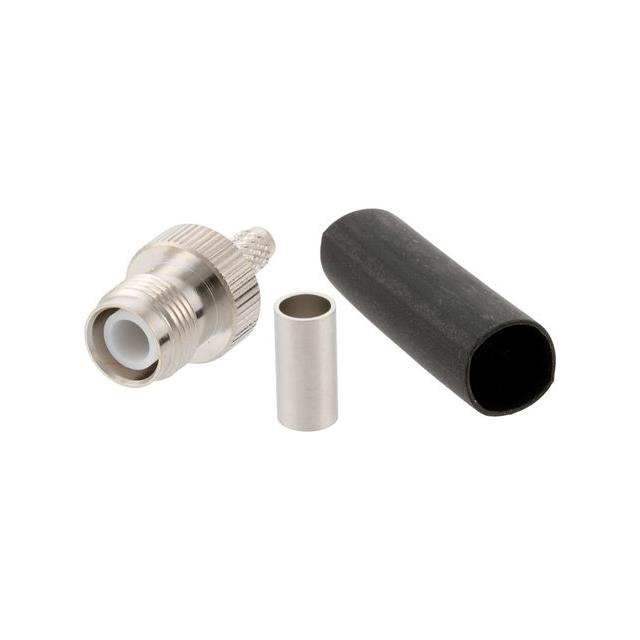

EZ-200-TF-RP
ActivePasternack
RP-TNC FEMALE CONNECTOR CRIMP/NO
EZ-200-TF-RP
ActivePasternack
RP-TNC FEMALE CONNECTOR CRIMP/NO
Description
General part information
EZ-200-TF-RP
RP-TNC Connector Receptacle, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ-200-TF-RP |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | LMR-200 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | RP-TNC |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.17 dB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
