4641
ActiveAdafruit Industries LLC

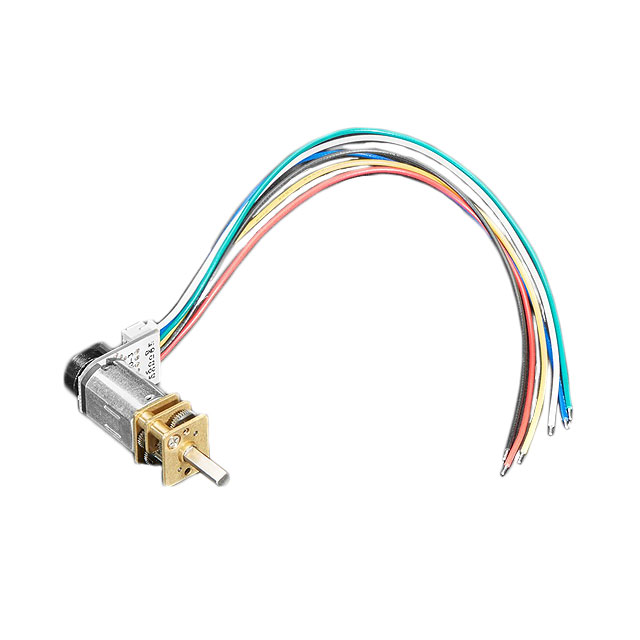

N20 DC MOTOR WITH MAGNETIC ENCOD
4641
ActiveAdafruit Industries LLC
N20 DC MOTOR WITH MAGNETIC ENCOD
Description
General part information
4641
DC Motor Gearmotor 33 RPM 6VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 4641 |
|---|---|
| Diameter - Shaft | 0.118 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 298 |
| Length - Shaft and Bearing | 0.394 in |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| RPM | 33 RPM |
| Size / Dimension Diameter | 0.48 in |
| Size / Dimension Shape | Round |
| Termination Style | Connector |
| Torque - Rated (mNm) | 113 mNm |
| Torque - Rated (oz-in) | 16 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
