MOT-I-81566-E
ActiveISL Products International

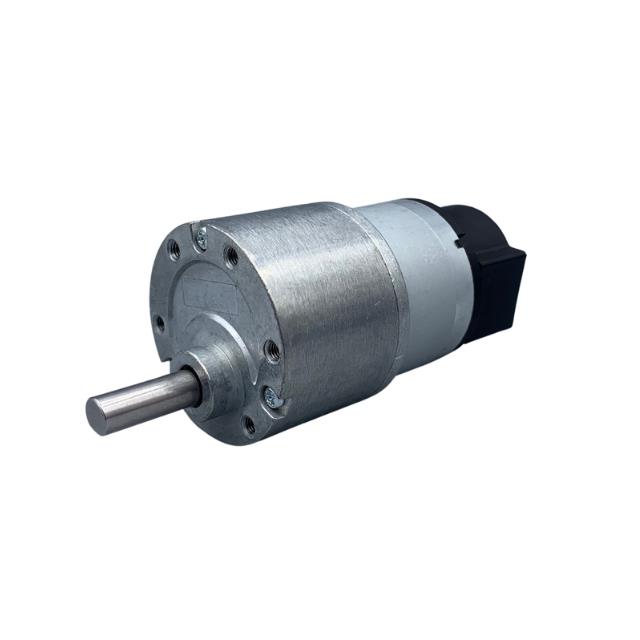

37MM SPUR GEAR MOTOR W/ ENCODER
MOT-I-81566-E
ActiveISL Products International
37MM SPUR GEAR MOTOR W/ ENCODER
Description
General part information
MOT-I-81566-E
Brushed DC Motor Gearmotor 8 RPM 1.5W Incremental 12VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81566-E |
|---|---|
| Diameter - Shaft | 0.236 in |
| Encoder Type | Incremental |
| Function | Gearmotor |
| Gear Reduction Ratio | 610 |
| Length - Shaft and Bearing | 3.386 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 1.22 in |
| Power - Rated | 1.5 W |
| RPM | 8 RPM |
| Size / Dimension Diameter | 1.457 in |
| Size / Dimension Shape | Round |
| Termination Style | Connector |
| Torque - Max Momentary (mNm) | 4412.98 mNm |
| Torque - Max Momentary (oz-in) | 624.93 oz-in |
| Torque - Rated (mNm) | 1765.2 mNm, 1765 mNm |
| Torque - Rated (oz-in) | 249.97 oz-in, 250 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VAC |
