Description
General part information

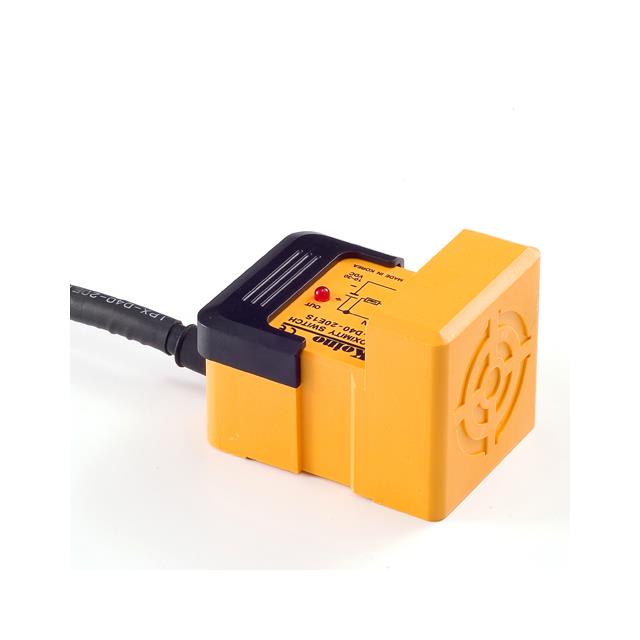

IPX-2D40-20A1S
Inductive Proximity Sensor 0.787" (20mm) IP67 Module
Technical Specifications
Parameters and characteristics for this part
| Specification | IPX-2D40-20A1S |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NC, 2-Wire |
| Package / Case | Module |
| Response Frequency | 100 Hz |
| Sensing Distance | 0.787 " |
| Sensor Type | Inductive |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 15 VDC |
