5-1376492-7

Active

TE Connectivity AMP Connectors

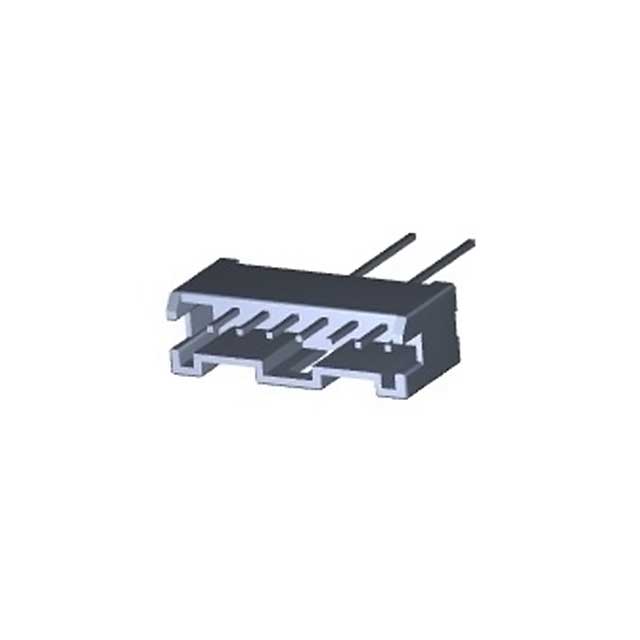

CONN HEADER VERT 7POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1376492-7

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 7POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-1376492-7	1376492 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	-	0.11 in
Contact Length - Post	-	2.79 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Current Rating (Amps)	-	2.5 A
Fastening Type	Latch Holder	Latch Holder
Insulation Color	Natural	Natural, Red
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	7	2 - 7
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	50 V	50 V

1376492 Series

CONN HEADER VERT 6POS 2.5MM

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Pitch - Mating	Pitch - Mating	Applications	Contact Shape	Number of Rows	Shrouding	Contact Material	Connector Type	Style	Termination	Contact Type	Fastening Type	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Current Rating (Amps)	Contact Finish - Post	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Current Rating (Amps)
TE Connectivity AMP Connectors 5-1376492-6	6	-30 ░C	105 ░C	Through Hole	Polyamide (PA66), Nylon 6/6, Glass Filled	2.5 mm	0.098 in	General Purpose	Square	1	Shrouded - 4 Wall	Brass	Header	Board to Cable/Wire	Solder	Male Pin	Latch Holder	Natural	UL94 V-0	All	Varies by Wire Gauge	Tin	50 V
TE Connectivity AMP Connectors 6-1376492-3		-30 ░C	105 ░C	Through Hole	Polyamide (PA66), Nylon 6/6, Glass Filled	2.5 mm	0.098 in		Square	1	Shrouded - 4 Wall	Brass	Header	Board to Cable/Wire	Solder	Male Pin	Latch Holder	Red		All		Tin	50 VAC	0.11 in	2.79 mm	2.5 A
TE Connectivity AMP Connectors 5-1376492-2	2	-30 ░C	105 ░C	Through Hole	Polyamide (PA66), Nylon 6/6, Glass Filled	2.5 mm	0.098 in	General Purpose	Square	1	Shrouded - 4 Wall	Brass	Header	Board to Cable/Wire	Solder	Male Pin	Latch Holder	Natural	UL94 V-0	All	Varies by Wire Gauge	Tin	50 V
TE Connectivity AMP Connectors 5-1376492-7	7	-30 ░C	105 ░C	Through Hole	Polyamide (PA66), Nylon 6/6, Glass Filled	2.5 mm	0.098 in	General Purpose	Square	1	Shrouded - 4 Wall	Brass	Header	Board to Cable/Wire	Solder	Male Pin	Latch Holder	Natural	UL94 V-0	All	Varies by Wire Gauge	Tin	50 V
TE Connectivity AMP Connectors 5-1376492-3		-30 ░C	105 ░C	Through Hole	Polyamide (PA66), Nylon 6/6, Glass Filled	2.5 mm	0.098 in	General Purpose	Square	1	Shrouded - 4 Wall	Brass	Header	Board to Cable/Wire	Solder	Male Pin	Latch Holder	Natural	UL94 V-0	All	Varies by Wire Gauge	Tin	50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.21
		10	$ 1.13
		100	$ 0.98
		500	$ 0.86
		1000	$ 0.77
		5000	$ 0.70
	Tape & Reel (TR)	18000	$ 0.65

Description

General part information

1376492 Series

Connector Header Through Hole 7 position 0.098" (2.50mm)

Documents

Technical documentation and resources
