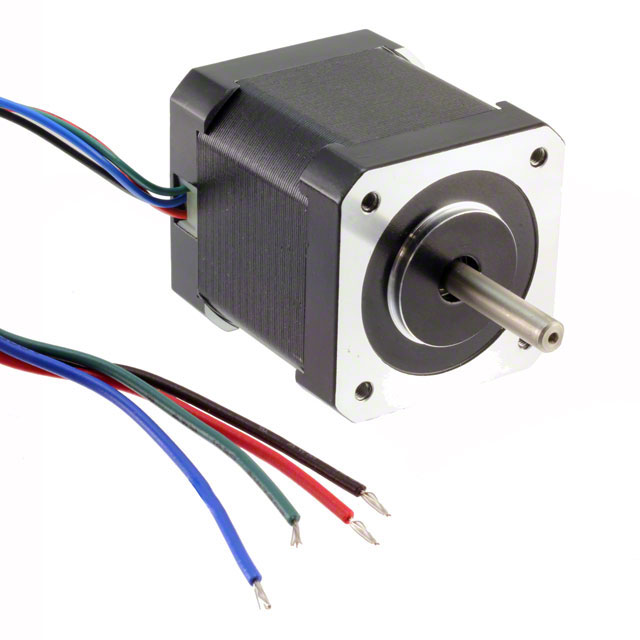

QSH4218-47-28-040
ActiveAnalog Devices Inc./Maxim Integrated
STEP MOTOR HYBRID BIPOLAR 1.4V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QSH4218-47-28-040
ActiveAnalog Devices Inc./Maxim Integrated
STEP MOTOR HYBRID BIPOLAR 1.4V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QSH4218-47-28-040 | QSH4218 Series |
|---|---|---|
| Approval Agency | - | CE |
| Coil Resistance | 1.5 Ohms | 1.5 - 5.3 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 2.81 A | 1 - 2.81 A |
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Features | Flatted Shaft | Flatted Shaft |
| Length - Shaft and Bearing [x] | 24 mm | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in | 0.945 in |
| Mounting Hole Spacing | 30.99 mm | 30.99 - 31 mm |
| Mounting Hole Spacing | 1.22 in | 1.22 in |
| NEMA Frame Size | 17 | 17 |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Rotor Inertia | 68 gcm² | 35 - 68 gcm² |
| Size / Dimension [x] | 42.3 mm | 42.3 mm |
| Size / Dimension [x] | 1.665 in | 1.665 in |
| Size / Dimension [y] | 1.665 in | 1.665 in |
| Size / Dimension [y] | 42.3 mm | 42.3 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Termination Style | Wire Leads | Wire Leads |
| Torque - Holding (oz-in / mNm) | 400 mNm | 270 - 490 mNm |
| Torque - Holding (oz-in / mNm) | 56.3 oz-in | 38.2 - 69.39 oz-in |
| Type | Hybrid | Hybrid |
| Voltage - Rated | 1.4 VDC | 1.4 - 5.3 VDC |
| Weight | 0.772 lb | 0.485 - 0.772 lb |
| Weight | 350.17 g | 219.99 - 350.17 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.01 | |
| 10 | $ 59.33 | |||
| 25 | $ 55.32 | |||
| 100 | $ 52.96 | |||
QSH4218 Series
STEP MOTOR HYBRID BIPOLAR 4.5V
| Part | Rotor Inertia | Coil Resistance | Steps per Revolution | Weight | Weight | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Mounting Hole Spacing | Mounting Hole Spacing | Features | Operating Temperature [Max] | Operating Temperature [Min] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | NEMA Frame Size | Termination Style | Approval Agency | Voltage - Rated | Coil Type | Type | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Current Rating (Amps) | Step Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated QSH4218-41-10-035 | 54 gcm² | 4.5 Ohms | 200 | 0.617 lb | 279.87 g | 1.665 in | 42.3 mm | 1.665 in | 42.3 mm | 30.99 mm | 1.22 in | Flatted Shaft | 50 °C | -20 C | 0.197 in | 5 mm | 17 | Wire Leads | CE | 4.5 VDC | Bipolar | Hybrid | 49.56 oz-in | 350 mNm | 24 mm | 0.945 in | 1 A | 1.8 ° |
Analog Devices Inc./Maxim Integrated QSH4218-47-28-040 | 68 gcm² | 1.5 Ohms | 200 | 0.772 lb | 350.17 g | 1.665 in | 42.3 mm | 1.665 in | 42.3 mm | 30.99 mm | 1.22 in | Flatted Shaft | 50 °C | -20 C | 0.197 in | 5 mm | 17 | Wire Leads | 1.4 VDC | Bipolar | Hybrid | 56.3 oz-in | 400 mNm | 24 mm | 0.945 in | 2.81 A | 1.8 ° | |
Analog Devices Inc./Maxim Integrated QSH4218-35-10-027 | 35 gcm² | 5.3 Ohms | 200 | 0.485 lb | 219.99 g | 1.665 in | 42.3 mm | 1.665 in | 42.3 mm | 30.99 mm | 1.22 in | Flatted Shaft | 50 °C | -20 C | 0.197 in | 5 mm | 17 | Wire Leads | CE | 5.3 VDC | Bipolar | Hybrid | 38.2 oz-in | 270 mNm | 24 mm | 0.945 in | 1 A | 1.8 ° |
Analog Devices Inc./Maxim Integrated QSH4218-51-10-049-10K | 5 Ohms | 200 | 1.665 in | 42.3 mm | 1.665 in | 42.3 mm | 31 mm | 1.22 in | Flatted Shaft | 50 °C | -20 C | 0.197 in | 5 mm | 17 | Wire Leads | CE | 5 V | Bipolar | Hybrid | 69.39 oz-in | 490 mNm | 24 mm | 0.945 in | 1 A | 1.8 ° | |||
Analog Devices Inc./Maxim Integrated QSH4218-35-10-027-10K | 35 gcm² | 5.3 Ohms | 200 | 1.665 in | 42.3 mm | 1.665 in | 42.3 mm | 31 mm | 1.22 in | Flatted Shaft | 50 °C | -20 C | 0.197 in | 5 mm | 17 | Wire Leads | CE | 5.3 VDC | Bipolar | Hybrid | 38.2 oz-in | 270 mNm | 24 mm | 0.945 in | 1 A | 1.8 ° | ||
Analog Devices Inc./Maxim Integrated QSH4218-51-10-049 | 5 Ohms | 200 | 0.772 lb | 350.17 g | 1.665 in | 42.3 mm | 1.665 in | 42.3 mm | 30.99 mm | 1.22 in | Flatted Shaft | 50 °C | -20 C | 0.197 in | 5 mm | 17 | Wire Leads | CE | 5 V | Bipolar | Hybrid | 69.39 oz-in | 490 mNm | 24 mm | 0.945 in | 1 A | 1.8 ° |
Description
General part information
QSH4218 Series
Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 2.81 A 1.4VDC
