23EZS0375N0030
ActiveEssentra Components
CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 1.366 ", 0.562 ", 0.35 "
23EZS0375N0030
ActiveEssentra Components
CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 1.366 ", 0.562 ", 0.35 "
Description
General part information
23EZS0375N0030

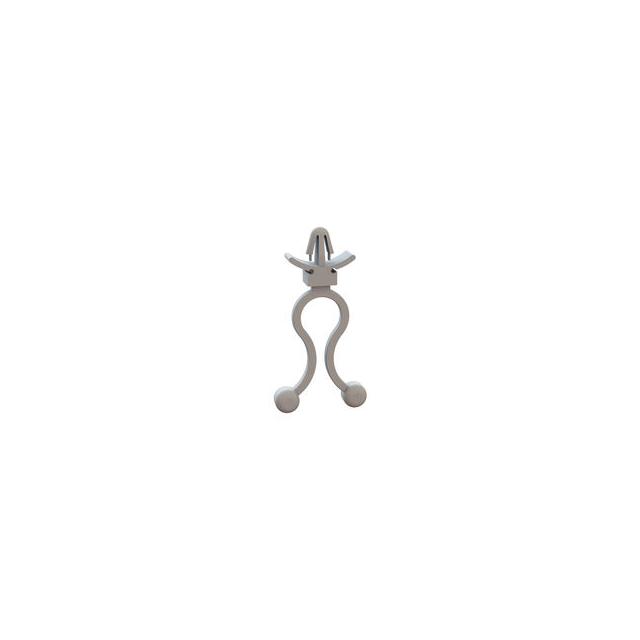

Cable Clip, Twist Lock Natural Push In 0.350" (8.89mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 23EZS0375N0030 |
|---|---|
| Color | Natural |
| Height | 1.066 in |
| Length | 0.562 in |
| Material | Nylon 6, 6, Polyamide (PA66) |
| Mounting Type | Push In |
| Opening Size | 0.35 in |
| Panel Hole Size | 0.187 in |
| Panel Thickness (Max) | 0.078 in |
| Panel Thickness (Min) | 0.03 in |
| Type | Twist Lock, Clip |
| Type Attributes | Standoff |
| Width | 0.218 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
