B85321A2945A101
ActiveEPCOS - TDK Electronics
CAP FEEDTHRU
B85321A2945A101
ActiveEPCOS - TDK Electronics
CAP FEEDTHRU
Description
General part information
B85321A2945A101

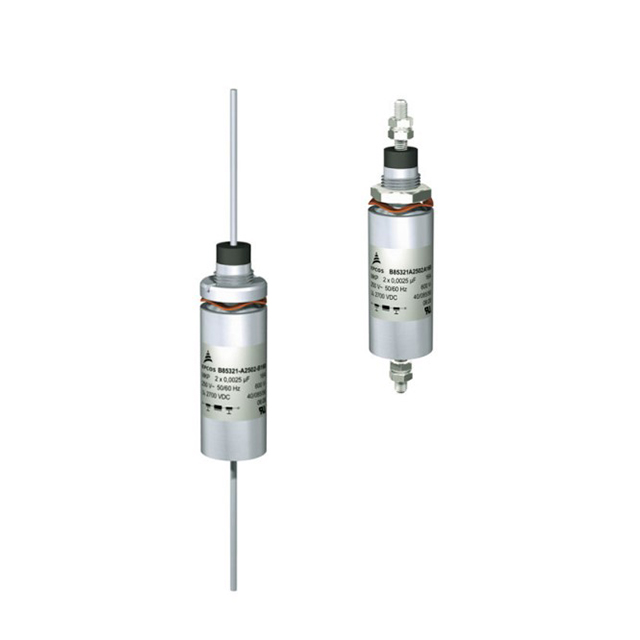

4.7 µF Feed Through Capacitor 350V 100 A Axial - Threaded Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | B85321A2945A101 |
|---|---|
| Capacitance | 4.7 µF |
| Current | 100 A |
| Insertion Loss | 100 dB |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial - Threaded Terminals |
| Size / Dimension Diameter | 2.165 in |
| Size / Dimension Length | 3.937 in |
| Tolerance | 20 % |
| Voltage - Rated | 350 V |
